PVC protective conduit Ø10 reel 10 m
Číslo dílu 167-00209 | FG14-PVC/ST-GY Podrobnosti na

  • Extremely flexible
  • Excellent mechanical protection
  • Good resistance to oils, acids and alkalis
  • Good resistance to chemicals

Vyžádejte si nyní individuální nabídku

Application FlexiGuard protective hoses are used to protect cables in machines and plant construction, and robotics as well as leads to switch cabinets.
Colour Grey (GY)
Material Flexible Polyvinyl Chloride, cadmium free (PVC), Steel (ST)
Pack Cont. 10m
Package Content packed in metre
PART DESCRIPTION FG14-PVC/ST-GY
Product Family PVC Conduits with steel wire spiral-reinforcement
Product Group FlexiGuard conduits and fittings
Short Description PVC protective conduit Ø10 reel 10 m

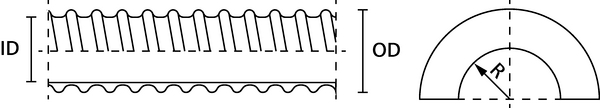

Bending Radius min. (R) 14mm
Diameter (D) 10mm
Flexibility extremely flexible
Inside Ø (ID) 10.0mm
Nominal ∅ 14mm
Outside Ø (OD) 14.0mm
Thread Size M16
Weight/Unit 0.076195kg
ELV compliant (Article 4 - 2) YES
Flammability UL 94 HB
Hazardous Goods No
IP-Rating IP68
Operating Temperature -20 °C to +70 °C, (+80 °C, 200 h)
Plain inside surface (Yes/No) No
Plain ouside surface (Yes/No) No
Specifications
Country of Origin DE
Customs Number 39173900
GTIN-13 / EAN 4031026280646
Packaging 1 - Height (m) 0.08m
Packaging 1 - Length (m) 0.27m
Packaging 1 - Qty 10
Packaging 1 - Type reel
Packaging 1 - Volume (m³) 0.00583
Packaging 1 - Weight (kg) 0.76195kg
Packaging 1 - Width (m) 0.27m
Packaging 3 - Height (m) 1.12m
Packaging 3 - Length (m) 1.2m
Packaging 3 - Qty 1000
Packaging 3 - Type carton
Packaging 3 - Volume (m³) 1.0752
Packaging 3 - Weight (kg) 80.395kg
Packaging 3 - Width (m) 0.8m
Packaging 4 - Height (m) 1.264m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 1000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.213
Packaging 4 - Weight (kg) 101.395kg
Packaging 4 - Width (m) 0.8m
Reel Length 10m
ETIM 7.0 Key EC001177
ETIM 8.0 Key EC001177
ETIM 9.0 Key EC001177
UNSPSC Key 39131601
