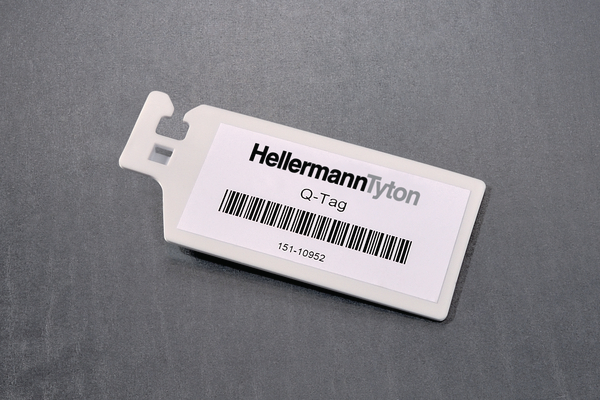

Cable tag, manual marking, 88.0x42.0mm, white, bag=50pcs.
Číslo dílu 151-10952
| QT7040S-PA66-WH
|
Copied
Tento výrobek již není k dispozici.
- Identify cable or cable bundle
- Quickly read or scan printed information
- Mark by hand with T82 series marker pen or use printed adhesive label
- HellermannTyton offers complete printing solution (printers, labels, ribbons)
- Perfect combination with Q-ties to safely secure and mark cables with highly visible text
ukázat více
Zobrazit méně
Vyžádat nabídku
Více výrobků v této skupině výrobků:

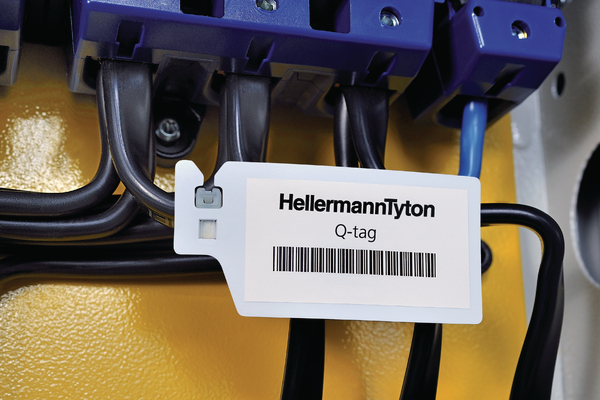

| Application | Q-tags are used to identify a cable or a cable bundle and are secured with a Q-tie. The Q-tag’s flag design allows the user to quickly read or scan the printed information. |
| Colour | White (WH) |
| Fixation Method | Others |
| Material | Polyamide 6.6 (PA66) |
| PART DESCRIPTION | QT7040S-PA66-WH |
| Package Content | 50pcs. |
| Package Content packed in | bag |
| Print Method | manual marking |
| Product Family | Q-tags |
| Product Group | Identification tags for marking cable bundles |
| Recommended Labels | TAG63TD1 |
| Short Description | Marking Plate 70X42 mm white |
| Type | QT7040S |
| UV-Stabilised | No |
| Variant | Other |
| Weight/Unit | 0.005302kg |
| With label space | Yes |
| CE Certification | No |
| CSA Certified | No |
| ELV compliant (Article 4 - 2) | Yes |
| Flammability | UL 94 V2 |
| Halogen-free | Yes |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +85 °C |
| ROHS compliant | Yes |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
|
|
|
| Country of Origin | DE |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026413853 |
| Packaging 1 - Height (m) | 0.05m |
| Packaging 1 - Length (m) | 0.14m |
| Packaging 1 - Qty | 50 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.0014m³ |
| Packaging 1 - Weight (kg) | 0.274129kg |
| Packaging 1 - Width (m) | 0.2m |
| Packaging 3 - Height (m) | 0.171m |
| Packaging 3 - Length (m) | 0.56m |
| Packaging 3 - Qty | 800 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.0172m³ |
| Packaging 3 - Weight (kg) | 4.579192kg |
| Packaging 3 - Width (m) | 0.18m |
| Packaging 4 - Height (m) | 1.152m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 38400 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.106m³ |
| Packaging 4 - Weight (kg) | 241.773kg |
| Packaging 4 - Width (m) | 0.8m |
