Sub Floor Box
Art.-No. 854-19200 | HTZB |  Details

Alpha Snap Sub Floor Box

    This product is not available anymore.
    • Aluminium extrusion
    • Accepts single or triple Euro Outlets
    • Maximum of 12 x RJ45 outlets
    • Can be used with LJ6C adaptor
    • Cable knockouts at both ends 20/25mm
    Show more
    Add to watchlist
    Colour Mill Finish (MLFS)

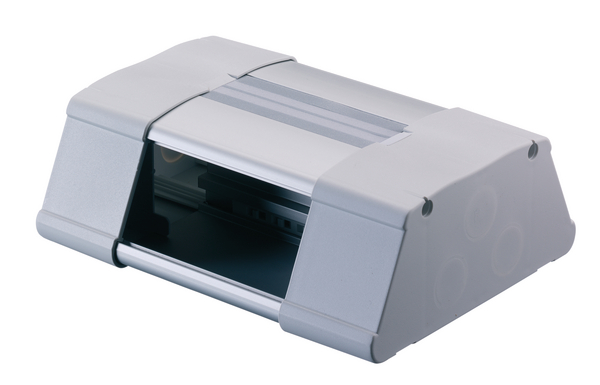

    Description The Sub Floor Box is an attractive easy to assemble design which can present up to 12 RJ45 outlets and is an ideal solution in any area where there is a raised floor.
    Material Aluminium (AL)
    Pack Cont. 1pc.
    Package Content packed in box
    PART DESCRIPTION HTZB
    Product Family Sub Floor Box
    Product Group General LAN Accessories
    Technical Description The sub floor box can accommodate up to 4 triple or 8 single Euro outlets or a mixture of both. Manufactured from aluminium the sub floor box has cable entry points at both ends which accept a maximum cable diameter of 25mm.
    Variant Zone box
    Depth (D) 201.68mm
    Length (L) 530.35mm
    Width (W) 530.35mm
    CE Certification No
    CSA Certified No
    Specifications
    UL Listed (US and Canada) Yes
    UL Recognized (US and Canada) No
    UL-File Number E216789
    UV-Stabilised No
    Country of Origin US
    Dimensions W x H x D 530.35 mm x 201.68 mm
    GTIN-13 / EAN 4031026727431
    ETIM 7.0 Key EC002762
    ETIM 8.0 Key EC002762
    ETIM 9.0 Key EC002762
    UNSPSC Key 43223307
