05/05/2025

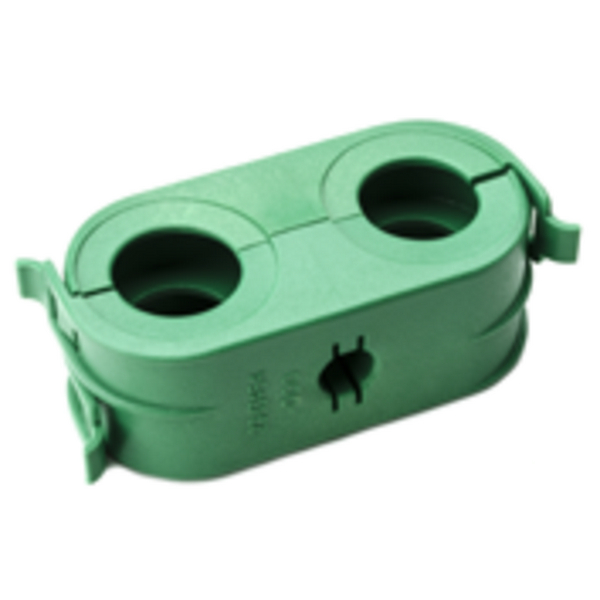

Cable tie mount with pipe/tube holder/for screw fixation, ⌀8.12 mm, green, 500pcs.
Art.-No. 133-00994 | HC2B-PA66HIRGF13-GN |

Copied
Each mount has two pawls for easy pre-installation on a threaded fastener prior to securing with a mechanical fastener.

    This product is not available anymore.
    Add to watchlist
    Downloads
    Colour Green (GN)
    Key product features for multiple routing, vibration absorbing, lockable
    Material Polyamide 6.6, high impact modified, glass-fiber reinforced (PA66HIRGF13)
    PART DESCRIPTION HC2B-PA66HIRGF13-GN
    Pack Cont. 500pcs.
    Package Content packed in bag
    Type HC2B
    Variant Separators
    ⌀ max. 1. loop 17.4mm
    ⌀ max. 2. loops 17.4mm
    Bundle ⌀ 17.4-17.4mm
    Bundle ⌀ max. 17.4mm
    Bundle ⌀ min. 17.4mm
    Height (H) 34.94mm
    Length (L) 67.77mm
    Width (W) 27.94mm
    for Hole ⌀ (FH) 8.12 mm
    CE Certification No
    Hazardous Goods No
    Operating Temperature -40 °C to +125 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    Country of Origin MX
    GTIN-13 / EAN 4031026454894
    Packaging 3 - Height (m) 0.20955m
    Packaging 3 - Length (m) 0.60801m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0506m³
    Packaging 3 - Weight (kg) 8.88kg
    Packaging 3 - Width (m) 0.39688m
    ETIM 7.0 Key EC000449
    ETIM 8.0 Key EC000449
    ETIM 9.0 Key EC000449
    UNSPSC Key 39121717
