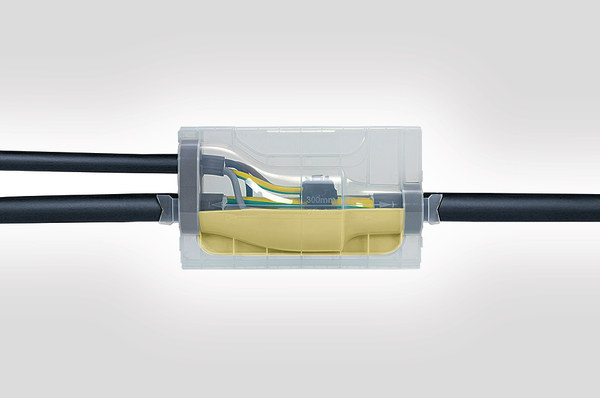

Cast resin joint, 4 x 70mm² to 4 x 240mm², L=420mm, 3900 ml/4758 g, Cold sealing compound cast resin (PBD) yellow
Art.-No. 435-00860
| PAH-4-140/420-C-PBD-YE
|
Details
This product is not available anymore.
- Impact-proof, transparent moulding shell
- Compact, optimized dimensions
- Longitudinally and transversely watertight
- SF-system
- Joint can be cast under influence of water
- Immediately ready for use
- Suitable for all compact branch clamping rings
More products in this product group:
| Application | The parallel branch joint PAH is a universal straight-through and branch joint. Suitable as single branch joint with commercial branch clamping rings. For polymeric cables and wires made of PVC, XLPE, PE, EPR and utility cables. Application: In low-voltage electrical networks as branch joint for building connections. Underground, submerged, outdoor, indoor. |
| Application Tool | PTS4, ASS103, RCS0425 |
| Colour | Yellow (YE) |
| Content |
Cast resin Reliflex, requires no hazardous labeling In a two-chamber pouch or in cans Transparent moulding shell Foam seal, protective gloves, emery cloth Cleaning cloth, cable kit, installation instructions SF-nozzle (two-chamber pouch) Mixing stick (can) |
| Material | Cold sealing compound cast resin (PBD) |
| No. of Wires | 4 |
| Pack Cont. | 1Set |
| Package Content packed in | box |
| PART DESCRIPTION | PAH-4-140/420-C-PBD-YE |
| Product Family | RELICON PAH-4, requires no hazardous labeling |
| Product Group | Parallel branch cable joints house connections |
| Short Description | Parallel branch joint house connection 4x70 to 4x240, 4x70 to 4x120 |
| Variant | Cast resin |
Download
| Country of Origin | DE |
| Customs Number | 39119099 |
| GTIN-13 / EAN | 4250596416525 |
| Packaging | Can |
| Packaging 1 - Height (m) | 0.25m |
| Packaging 1 - Qty | 1 |
| Packaging 1 - Type | pack |
| Packaging 1 - Weight (kg) | 6.454kg |
| Packaging 1 - Width (m) | 0.275m |
| Packaging 4 - Height (m) | 1.2m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 30 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.152m³ |
| Packaging 4 - Weight (kg) | 214.62kg |
| Packaging 4 - Width (m) | 0.8m |
| Storage Temperature | +4 °C to +40 °C |
