This Product is No Longer on General Sale

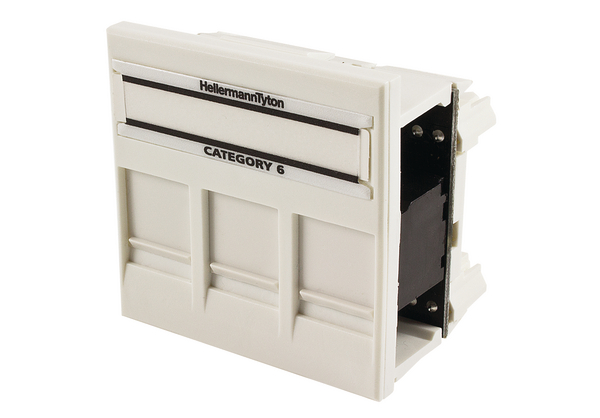

GigaBand UTP Category 6
Art.-No. 852-05305
| ASFP03-3L-NGB/WH
|
Copied
- Triple Outlet features 3 shuttered modular RJ45 outlets
- Fully modular - individual PCB’s
- Exceeds Category 6 performance standards
- Rear cable tie point
- Patented slide label system
- 568A or 568B wiring options
- Backward compatible with Category 5e, Category 5 and voice
More products in this product group:
| Application | The GigaBand Cat6 products are designed to support any data or voice protocol running over a Cat6 cabling system and is backwards compatible with existing Cat5E, Cat5 and voice network infrastructure. |
| Colour | White (WH) |
| Description |
The GigaBand Triple Outlet forms part of the leading Category 6 GigaBand product range from HellermannTyton. The individual modular design of the GigaBand system allows for uncompromised performance and quality. GigaBand Triple Outlet is only available in the proprietary HellermannTyton (Alpha Snap) mounting size and fit into all Alpha Snap faceplates. The GigaBand products are designed to support any data or voice protocol that is capable of running over a Category 6 cabling system. |
| Internet Customer Notice | This Product is No Longer on General Sale |
| PART DESCRIPTION | ASFP03-3L-NGB/WH |
| Package Content | 1pc. |
| Package Content packed in | box |
| Performance Category | Category 6 (Class E) |
| Port count | 3 |
| Product Family | Triple Outlet |
| Product Group | GigaBand UTP Category 6 |
| Technical Description |

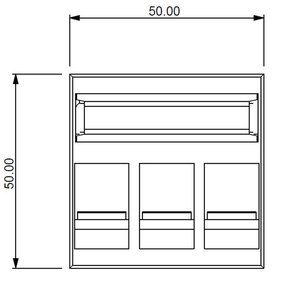

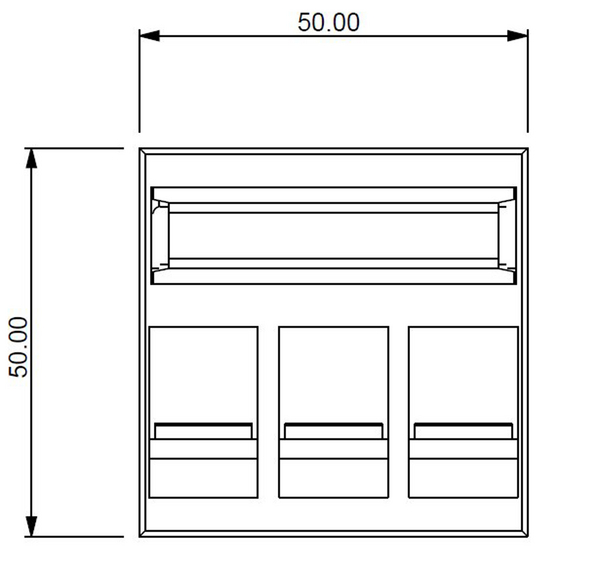

GigaBand Outlets offer exceptional Category 6 performance and are available in standard (25mm x 50mm) mounting size or High Density (50mm x 50mm) triple format. The GigaBand Triple Outlet is tested to exceed the latest published versions of ISO/IEC 11801, BS/EN50173 and ANSI/TIA/EIA 568-C Category 6. The Alpha Label software package is available for download at www.htdata.co.uk and enables straight forward port labelling. The GigaBand Category 6 Triple Outlet offers backward compatibility with Category 5e, Category 5 and voice products. |
| Type | ASFP03-3L-NGB/WH |
