BSHLR200-E/CTFE-BK : BSHLR200
Art.-No. 170-03114 | BSHLR200-E/CTFE-BK Details

  • Meets UL 2024 and NFPA 262 specifications meets requirements for use in plenum applications
  • Technically advanced monofilament material is rated as low smoke, flame resistant and can withstand exposure to Cobal 60 radiation
  • Exceeds requirements of FMVSS 302 as well as aviation industry requirements of FAR25
Colour Black (BK)

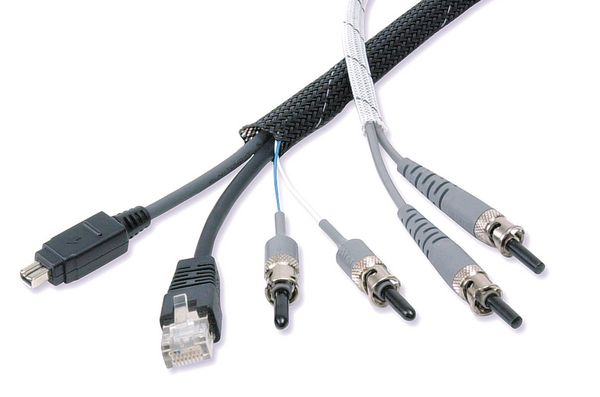

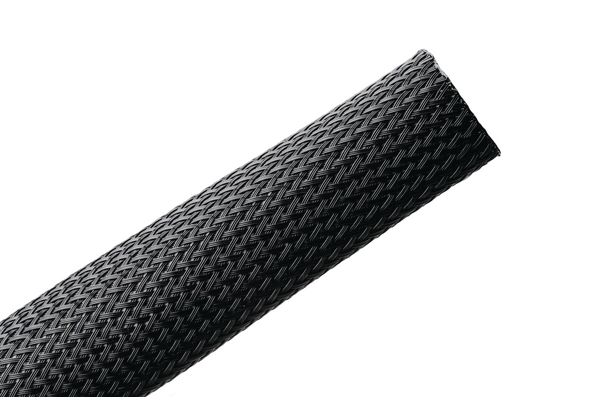

Description Halar self-extinguishing sleeving is used where flammability, high temperature endurance and low outgassing are the primary concern.
Material Ethylene Chlorotrifluoroethylene (E/CTFE)
Open, post termination (Yes/No) No
Pack Cont. 15.24m
Package Content packed in reel
PART DESCRIPTION BSHLR200-E/CTFE-BK
Bundle Diameter max (metric) 88.9mm
Bundle ∅ 38.1-88.9mm
Bundle ∅ min. 38.1mm
Diameter (D) 50.8mm
Length (L) 15.2m
Nominal ∅ 50.8mm
Nominal ∅ 2"
∅ D 2.0"
Abrasion Resistance Medium
CE Certification No
CSA Certified No
Flammability UL VW-1, FAR 25
Halogen-free No
Melting Point +250 °C
Operating Temperature -75 °C to +150 °C
Specifications
Specifications ANSI/UL 746B, UL 1441, UL 2024, UL 746A
UL Listed (US and Canada) No
UL OCD link Link
UL Recognized (US and Canada) Yes
UL-File Number E107055
UV-Stabilised (Yes/No) No
Country of Origin US
GTIN-13 / EAN 4031026443126
Packaging 1 - Weight (kg) 1.04kg
Reel Length 15.2m
Reel Length 50.0ft
ETIM 7.0 Key EC001182
ETIM 8.0 Key EC001182
ETIM 9.0 Key EC001182
UNSPSC Key 39131602
