High Temperature Nomex®
Art.-No. 170-03163 | BSNMX105B-PMPI-GN Details

  • Self extinguishing material does not melt and is unaffected by most acids, and provides excellent thermal stability against direct flame
  • Meets FMVSS 302 specifications for use in automotive engineering
  • Material cuts with ordinary scissors which reduces assembly time
Colour Green (GN)

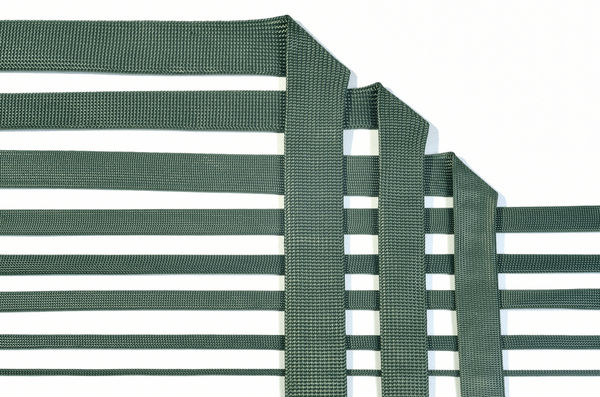

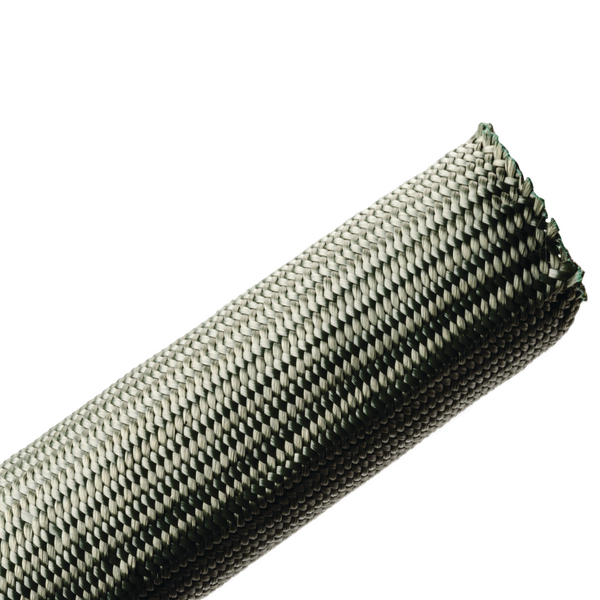

Description A densely woven aramid fiber sleeving, this soft and flexible material is self extinguishing and can withstand temperatures reaching up to 662°F.
Material Polyaramid Polymetaphenylene Isophthalamide (PMPI)
Open, post termination (Yes/No) No
Pack Cont. 30.48m
Package Content packed in reel
PART DESCRIPTION BSNMX105B-PMPI-GN
Product Group High Temperature Nomex®
Bundle Diameter max (metric) 28.7mm
Bundle ∅ 19.1-28.7mm
Bundle ∅ min. 19.1mm
Diameter (D) 25.4mm
Length (L) 30.48m
Nominal ∅ 25.4mm
Nominal ∅ 1"
∅ D 1.0"
Abrasion Resistance Low
CE Certification No
CSA Certified No
Flammability UL VW-1
Halogen-free Yes
Operating Temperature -196 °C to +350 °C
Specifications
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UV-Stabilised (Yes/No) No
Country of Origin US
GTIN-13 / EAN 4031026444079
Packaging 1 - Weight (kg) 1.1kg
Reel Length 30.5m
Reel Length 100.0ft
ETIM 7.0 Key EC001182
ETIM 8.0 Key EC001182
ETIM 9.0 Key EC001182
UNSPSC Key 39131602
