Fray Resistant : BSPSC1120

Article number: 170-03016

Features

• Cuts with scissors without fraying ends enables field installations without need for hot knife.
• Material construction offers excellent abrasion and cut-through protection as well as inertness to common chemicals and fungus.
• Expands to 150% of easy installation and reduced assembly time requirements.

Certifications & Approvals

Colour Black (BK)

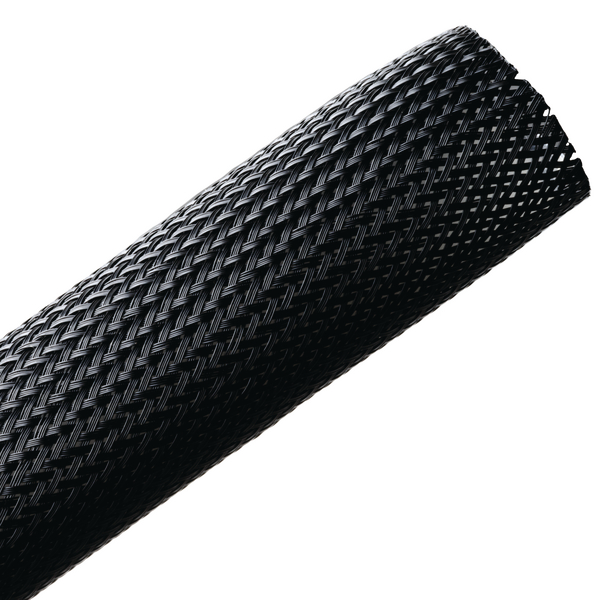

Description A versatile and economical general purpose braided sleeving that resists fraying when cut with ordinary scissors.
Open, post termination (Yes/No) No
Pack Cont. 15.24m
Package Quantity per reel
PART DESCRIPTION BSPSC1120-PET-BK
Product Group Fray Resistant
Short Description Fray Resistant Expandable Braided Sleeving, 1.50" Dia., PET, Black, 50.0 ft/Standard Reel
Bundle ∅ max. 50.8mm
Bundle ∅ min. 31.8mm
Diameter (D) 38.1mm
Length (L) 15.2m
Nominal ∅ 38.1mm
Nominal ∅ 1.5"
∅ D 1.50"
Abrasion Resistance Medium
CE Certification No
CSA Certified No
Flammability UL 94 V0
Halogenfree Yes
Material Polyester (PET)
Melting Point +250 °C
Operating Temperature - °C -70 °C to +125 °C
Specifications
UL Listed (US and Canada) No
UL Recognized (US and Canada) Yes
UL-File Number E147924
EAN / GTIN 4031026432007
Reel Length 50.0ft
Reel Length 15.2m
Weight 0.925lbs
Weight 0.42kg
ETIM 6.0 EC001182
ETIM 7.0 Key EC001182
UNSPSC Key 39131602
