28/03/2024

BSPSW103B-PET-OG : BSPSW103B
Art.-No. 170-03085 | BSPSW103B-PET-OG Details

  • Split wrap design installs quickly, saving assembly time and future accessibility without disassembly
  • Unique construction retains shape and rigidity throughout unrolling
  • Easy open design allows quick assembly, future access, and ability to apply protective sleeving post assembly or post installation situations
Colour Orange (OG), High Voltage (HV)

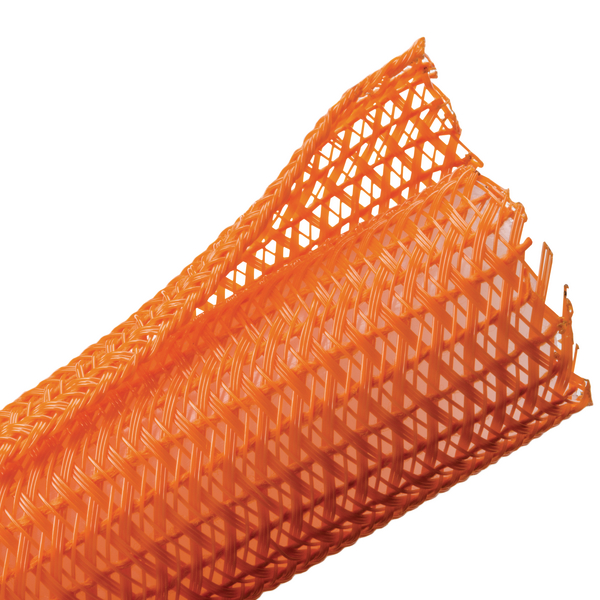

Description A lateral split, semi-rigid and flame retardant braided sleeving configuration used when ease of installation and repeat access to wire bundle is required. The lateral split allows the sleeving to open and accommodate a variety of bundling requirements. The 25% edge overlap rolls back over connectors and splices without exposing the bundled wires.
Material Polyester (PET)
Open, post termination (Yes/No) No
Pack Cont. 30.48m
Package Content packed in box
PART DESCRIPTION BSPSW103B-PET-OG
Bundle Diameter max (metric) 25.4mm
Bundle ∅ 2.54-25.4mm
Bundle ∅ min. 2.54mm
Diameter (D) 25.4mm
Length (L) 30.48m
Nominal ∅ 25.4mm
Nominal ∅ 1"
Wall (WT) 0.97mm
Wall (WT) 0.038"
∅ D 1.0"
Abrasion Resistance Medium
CE Certification No
CSA Certified No
Flammability UL 94 V0
Halogen-free Yes
Melting Point +250 °C
Operating Temperature -70 °C to +125 °C
Specifications
UL Listed (US and Canada) No
UL Recognized (US and Canada) Yes
UL-File Number E147924
UV-Stabilised (Yes/No) No
Country of Origin MX
GTIN-13 / EAN 4031026440996
Packaging 1 - Weight (kg) 0.91kg
Reel Length 30.5m
Reel Length 100.0ft
ETIM 7.0 Key EC001182
ETIM 8.0 Key EC001182
ETIM 9.0 Key EC001182
UNSPSC Key 39131602
