Fray Resistant & Flame Retardant
Art.-No. 170-03019 | BSSCFR100-PET-BK |  Details

Treated yarns extinguish quickly and reduces potential flame spread to surrounding components.

    • Increased braid density coverage provides higher level of abrasion resistance without losing flexibility
    • Treated yarns extinguish quickly and reduces potential flame spread to surrounding components
    • Cuts with ordinary scissors without fraying ends
    Add to watchlist
    Downloads Datasheet
    Colour Black (BK)

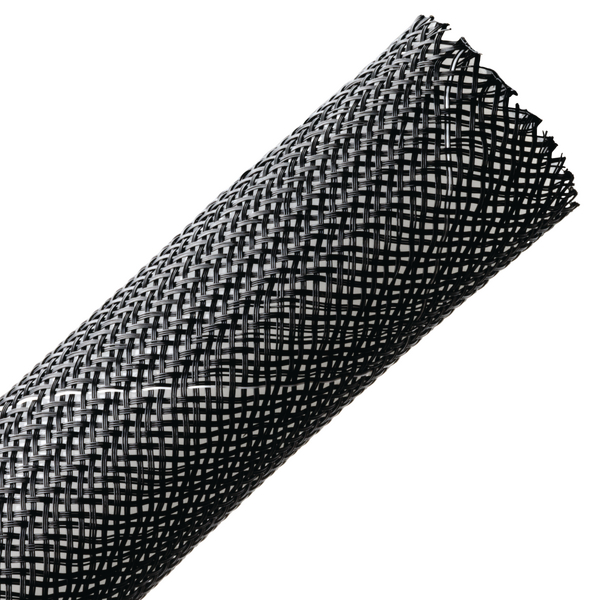

    Description Treated polyester yarns that can be cut with sharp scissors and provides flame retardant properties. Well suited for situations where access to a hot knife is either impractical or impossible. Contains white tracer thread for easy identification.
    Material Polyester (PET)
    Open, post termination (Yes/No) No
    Pack Cont. 15.24m
    Package Content packed in reel
    PART DESCRIPTION BSSCFR100-PET-BK
    Product Group Fray Resistant & Flame Retardant
    Bundle Diameter max (metric) 30.2mm
    Bundle ∅ 19.1-30.2mm
    Bundle ∅ min. 19.1mm
    Diameter (D) 25.4mm
    Length (L) 15.2m
    Nominal ∅ 25.4mm
    Nominal ∅ 1"
    ∅ D 1.0"
    Abrasion Resistance Medium
    CE Certification No
    CSA Certified No
    Flammability UL VW-1, Mil-202
    Halogen-free Yes
    Limited Fire Hazard Yes
    Melting Point +250 °C
    Operating Temperature -70 °C to +125 °C
    Specifications
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) Yes
    UL-File Number E147924
    UV-Stabilised No
    Country of Origin MX
    GTIN-13 / EAN 4031026432038
    Packaging 1 - Weight (kg) 0.28kg
    Reel Length 15.2m
    Reel Length 50.0ft
    ETIM 7.0 Key EC001182
    ETIM 8.0 Key EC001182
    ETIM 9.0 Key EC001182
    UNSPSC Key 39131602
    Cable protection conduits Cable protection conduits

    Cable Protection Conduits

    No cable can meet the demands posed today in terms of abrasion resistance, tensile strength and form consistency or impact resistance without having appropriate cable protection. Cable protection tubes...
