Twist-In(A)16-PET-OG
Art.-No. 170-01120 | Twist-In(A)16-PET-OG |

Copied

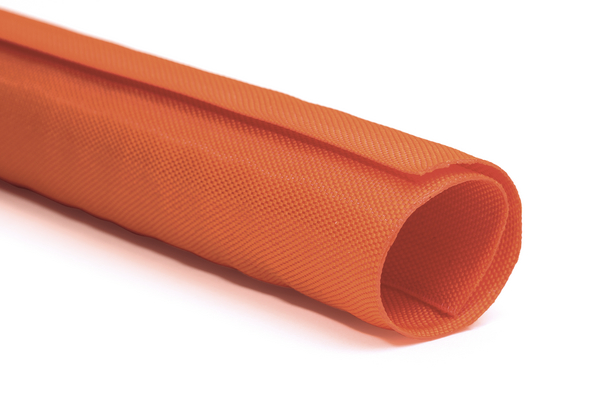

Helagaine Twist-In self-closing sleeving.

    Add to watchlist
    Downloads
    Application Method For optimum cable protection including flexibility, we recommend that a filling level of 75% is not exceeded.
    Colour Orange (OG)
    Key product features self closing
    Material Polyester (PET)
    Open, post termination (Yes/No) Yes
    PART DESCRIPTION Twist-In(A)16-PET-OG
    Pack Cont. 50m
    Package Content packed in reel
    Size 16 mm
    Size 5/8"
    Type Twist-In(A)16
    Bundle ⌀ 13-19mm
    Bundle ⌀ max. 19mm
    Bundle ⌀ min. 13mm
    Diameter (D) 16mm
    Nominal ⌀ 0.63"
    Nominal ⌀ 16mm
    Wall (WT) 0.04"
    Wall (WT) 0.9mm
    Weight/Unit 0.048kg
    CE Certification No
    CSA Certified No
    ELV compliant (Article 4 - 2) YES
    Flammability FMVSS 302, Type B
    Halogen-free No
    Hazardous Goods No
    Melting Point +240 °C
    Operating Temperature -50 °C to +150 °C
    ROHS compliant Yes
    Self extinguishing Yes
    Specifications
    UV-Stabilised No
    Country of Origin CN
    Customs Number 58063210
    GTIN-13 / EAN 4031026604848
    Packaging 1 - Height (m) 0.14m
    Packaging 1 - Length (m) 0.42m
    Packaging 1 - Qty 50
    Packaging 1 - Type reel
    Packaging 1 - Volume (m³) 0.024696m³
    Packaging 1 - Weight (kg) 2.4kg
    Packaging 1 - Width (m) 0.42m
    Packaging 3 - Height (m) 0.43m
    Packaging 3 - Length (m) 0.57m
    Packaging 3 - Qty 200
    Packaging 3 - Type carton
    Packaging 3 - Volume (m³) 0.1078m³
    Packaging 3 - Weight (kg) 10.8kg
    Packaging 3 - Width (m) 0.44m
    Packaging 4 - Height (m) 1.004m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 800
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 0.964m³
    Packaging 4 - Weight (kg) 64.2kg
    Packaging 4 - Width (m) 0.8m
    Reel Length 164.0ft
    Reel Length 50m
    ETIM 7.0 Key EC001182
    ETIM 8.0 Key EC001182
    ETIM 9.0 Key EC001182
    UNSPSC Key 39131602
    Cable protection conduits Cable protection conduits

    Cable Protection Conduits

    No cable can meet the demands posed today in terms of abrasion resistance, tensile strength and form consistency or impact resistance without having appropriate cable protection. Cable protection tubes...

    Wire conduits >
