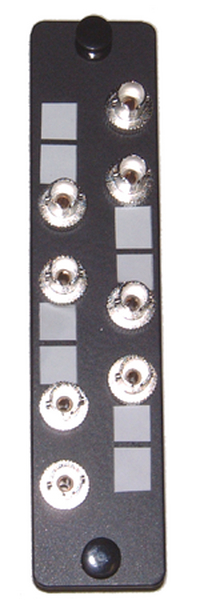

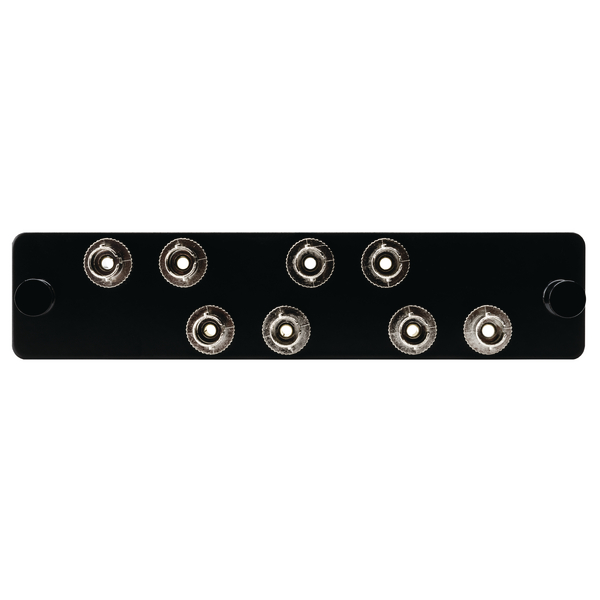

FAP8SMMST

Article number: 855-04218

Features

In order to customize wall mount or rack mount fiber optic enclosures, HellermannTyton offers several panels with various adapters including ST, SC, MTRJ and LC. All modular adapter panels are assembled with industry standard adapters. The multimode adapters utilize high performance zirconia ceramic and phosphorous-bronze split sleeve inserts for minimal insertion loss contribution. A blank metal adapter panel is also available. The adapter panels are easily snapped into the enclosures with snap lock mounting fixtures.

Colour Black (BK)
Connector Type ST
Features and Benefits In order to customize wall mount or rack mount fiber optic enclosures, HellermannTyton offers several panels with various adapters including ST, SC, MTRJ and LC. All modular adapter panels are assembled with industry standard adapters. The multimode/single mode adapters utilize high performance zirconia ceramic and phosphorous-bronze split sleeve inserts for minimal insertion loss contribution. A blank metal adapter panel is also available. The adapter panels are easily snapped into the enclosures with snap lock mounting fixtures.
GLOBAL PART NAME (auto set) FAP8SMMST
Pack Cont. 1
Package Quantity per bag
Performance Category Single Mode, Multimode
Port count 8
Height (H) 29.0mm
Length (L) 129.3mm
Width (W) 28.96mm
Dimensions W x H x D 28.96 mm x 29.0 mm x
UNSPSC Key 43223323
