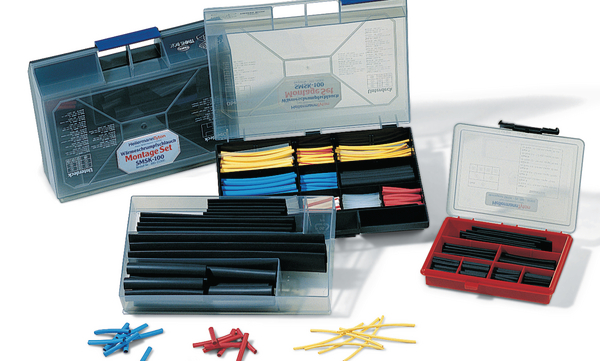

SMSK-100 assortment-PO-X-MIX
Art.-No. 380-01000 | SMSK-100 assortment-PO-X-MIX |

Copied

    This product is not available anymore.
    • Kit for electrical installation work on site
    • Wide range of tubing sizes
    Add to watchlist
    Colour Various (MIX)
    Content The kit contains a range of general purpose tubing lengths sorted in various sizes and colours. The individual compartments can be refilled with SMSN refill-packs. One SMSN refill-pack lasts for 5 refills.
    Material Polyolefin, chemically cross-linked (PO-X)
    PART DESCRIPTION SMSK-100 assortment-PO-X-MIX
    Pack Cont. 1Set
    Package Content packed in pcs.
    Printable No
    Shrink Ratio 2:1
    Type SMSK-100 assortment
    Variant Thin-Wall
    With inner glue (Yes/No) No
    Longitudinal Change After Shrinkage -5% max.
    Dielectric Strength 20kV/mm
    Dielectric Strength test method IEC 684 P2
    Flammability ASTM D876
    Insulation Class B (VDE 0530)
    Min. Shrink Temperature - °C +120 °C
    Operating Temperature -55 °C to +135 °C
    ROHS compliant No
    Country of Origin DE
    GTIN-13 / EAN 4031026151656
    Packaging 1 - Qty 1
    Packaging 1 - Weight (kg) 1.5600kg
    Packaging 3 - Qty 6
    Packaging 3 - Type carton
    Packaging 3 - Weight (kg) 9.86kg
    Packaging 4 - Length (m) 1.20m
    Packaging 4 - Qty 180
    Packaging 4 - Type pallet
    Packaging 4 - Weight (kg) 315.0kg
    Packaging 4 - Width (m) 0.80m
    ETIM 7.0 Key EC001049
    ETIM 8.0 Key EC001049
    ETIM 9.0 Key EC001049
    UNSPSC Key 39121723
