HVM 4-95/300-PO-X-BK
Art.-No. 475-43000 | HVM 4-95/300-PO-X-BK |

Copied

    This product is not available anymore.
    • Contains the necessary parts to make a water-tight connection with 3 to 5 inner sleeves and a protective outer-sleeve
    • Heat shrinkable sleeves are adhesive lined and provide a reliable and effective seal against moisture
    Add to watchlist
    Application For low voltage cables according to VDE 0271/0272 N (A) YY, N (A) 2 XY and N (A) YC (W) Y for in- and outdoor use.
    Colour Black (BK)
    Material Polyolefin, cross-linked (PO-X)
    No. of Inner sleeves 4
    No. of Wires 3−4
    PART DESCRIPTION HVM 4-95/300-PO-X-BK
    Pack Cont. 1Set
    Package Content packed in pcs.
    Shrink Ratio up to 3:1
    Type HVM 4-95/300
    Length (L) 300mm
    Length (L2) 1000mm
    Longitudinal Change After Shrinkage -10% max.
    Recov. ⌀ d max. 12.0mm
    Recov. ⌀ d2 38.0mm

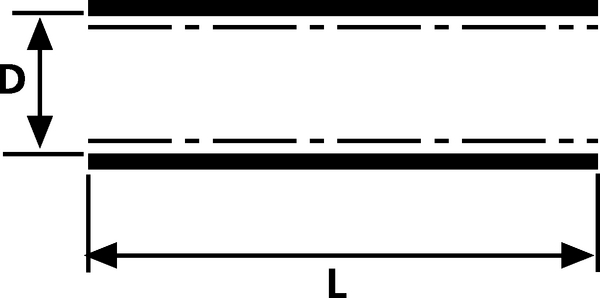

    Supplied ⌀ D min. 38.0mm

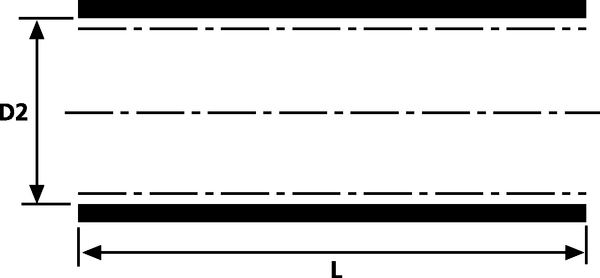

    Supplied ⌀ D2 115.0mm
    Tolerance +/- ±10%
    Wire Size Range (mm²) 35-150mm
    Dielectric Strength 10kV/mm
    Dielectric Strength test method IEC 684 P2
    Flammability ASTM D876 (outer layer only)
    Min. Shrink Temperature - °C +135 °C
    Operating Temperature -35 °C to +75 °C
    ROHS compliant Yes
    Specifications
    Country of Origin NL
    GTIN-13 / EAN 4031026154046
    Packaging 1 - Height (m) 0.050m
    Packaging 1 - Length (m) 0.240m
    Packaging 1 - Qty 1
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.00288m³
    Packaging 1 - Weight (kg) 0.0200kg
    Packaging 1 - Width (m) 0.240m
    ETIM 7.0 Key EC001169
    ETIM 8.0 Key EC001169
    ETIM 9.0 Key EC001169
    Heat shrink tubing Heat shrink tubing
