Set ADSB-F 28/7
Art.-No. 874-00073 | Set_ADSB-F_28/7-BK/OG Details

  • water impact classes according to DIN 18533: W1.1-E: Soil moisture and non-pressing water in floor slabs and walls in contact with the ground; W1.2-E: Soil moisture and non-pressing water in floor slabs and walls in contact with the ground with drainage
  • gas and water tightness: 1 bar
  • principle of sealing: integrated sealing element
  • installation in concrete wall: no auxiliary material needed
  • installation in hollow block: sanded sleeve
Show more

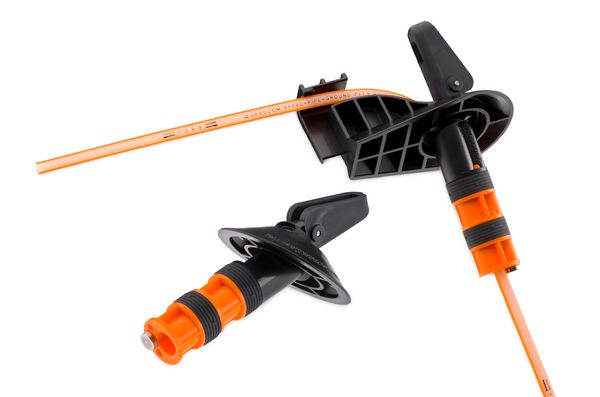

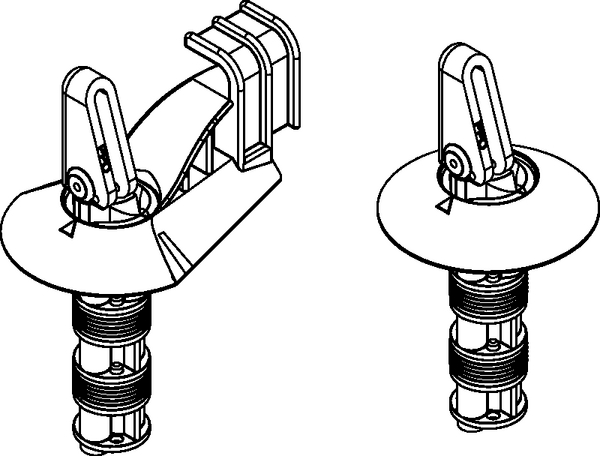

Application gabocom offers two different sealing elements with protective bend: ADSB (single) and ADSB-D (double). Both versions include a inside- and outside-part with integrated sealing that allow the house lead-in of cables or speedpipe ground in the cellar. Without the use of tools - they are suitable for the application in environments with soil moisture or non-pressing water, gas- and water-tight up to 1 bar. The ADSB-F can also be installed in buildings without basement and can be installed with an installation angle of up to 30°. After the blowing-in process the speedpipe ground is fed into the integrated deflection pulley and lead along the cellar wall. From a wall thickness of over 400 mm upwards or in hollow block, the additional use of the sanded sleeve is recommended.
Application Method 1 speedpipe ground 7x1.5
Colour Black (BK), Orange (OG)
Pack Cont. 10
Package Content packed in carton
PART DESCRIPTION Set_ADSB-F_28/7-BK/OG
Product Family Set ADSB-F 28/7
Product Group House lead-ins ADSB/ADSB-D/ADSB-F.
Diameter (D) 28mm
Country of Origin DE
GTIN-13 / EAN 4031051424695
Packaging 1 - Qty 10
Packaging 1 - Type carton
Packaging 2 - Qty 400
Packaging 2 - Type pallet
ETIM 7.0 Key EC000000
ETIM 8.0 Key EC000000
ETIM 9.0 Key EC000000
