SRV-G 40/4x12
Art.-No. 872-00018 | SRV-G_40/4x12-PE-HD-OG |  Details

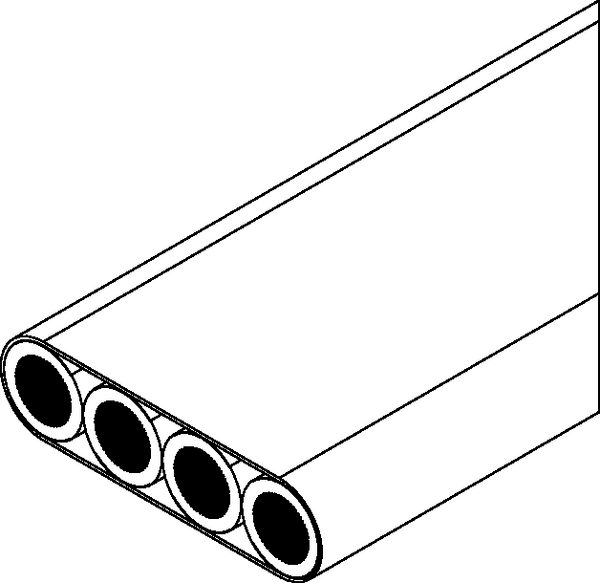

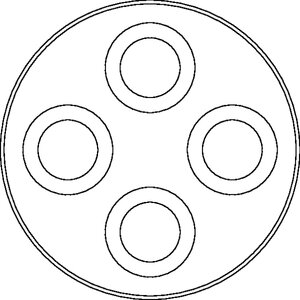

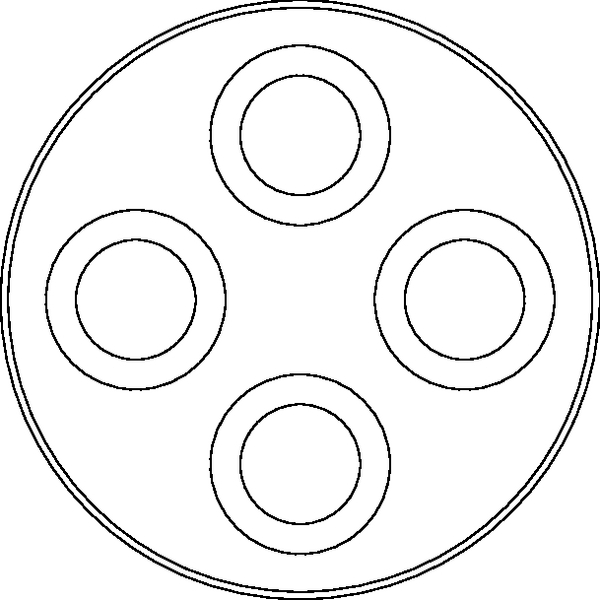

speedpipe bundles ground SRV-G with EZA-t and Shi for in-duct installations.

    Add to watchlist
    Colour Orange (OG)
    Description 4 speedpipe ground 12x2.0
    Material Polyethylene, high density (PE-HD)
    Pack Cont. 350m
    Package Content packed in drum
    PART DESCRIPTION SRV-G_40/4x12-PE-HD-OG
    Product Family SRV-G 40/4x12
    Product Group thick-walled speedpipe ground single ducts in connection: SRV-G
    Variant gabo
    Diameter (D) 40mm
    Length (L) 350m
    Wall (WT) 0.5mm
    Weight/Unit 0.319kg
    Country of Origin DE
    GTIN-13 / EAN 4031051421076
    Packaging 1 - Height (m) 1.2m
    Packaging 1 - Length (m) 1.2m
    Packaging 1 - Qty 350
    Packaging 1 - Type drum
    Packaging 1 - Volume (m³) 0.52704m³
    Packaging 1 - Weight (kg) 134.65kg
    Packaging 1 - Width (m) 0.366m
    Packaging 2 - Height (m) 1.248m
    Packaging 2 - Length (m) 1.2m
    Packaging 2 - Qty 1050
    Packaging 2 - Type pallet
    Packaging 2 - Volume (m³) 1.7971m³
    Packaging 2 - Weight (kg) 419.95kg
    Packaging 2 - Width (m) 1.2m
    ETIM 7.0 Key EC000000
    ETIM 8.0 Key EC000000
    ETIM 9.0 Key EC000000
