31/10/2025

speedpipe bundles for in-duct systems.
Art.-No. 872-00002 | SRV_50/8x10-PE-HD-OG |

Copied

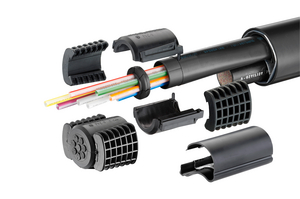

SRV bundles with EZA-t for in-duct installations.

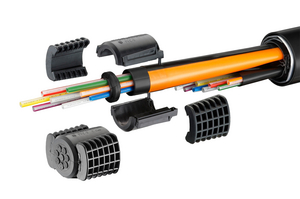

SRV bundles with EZA-t and SHa for in-duct installations.
speedpipe bundles SRV
speedpipe bundles SRV

    • significant cost saving especially appears in comparison to the occupation with a multi duct MR4
    • high-quality PE-HD ensures highest product quality and a long life cycle
    • fibre optic cables can be blown into the speedpipe over long distances
    • branching off is carried out in an easy and cost saving way
    • SRV can be sealed against gas and water up to 0.5 bar and are fixed against elongations due to temperature changes by using the outside stiffener SHa or the double outside stiffener DSHa and the ADE / TDUX (Tyco)
    • supplied on a wooden one-way spool
    Add to watchlist
    Show all
    Application By means of a cable grip on the flexible jacket pipe the speedpipe bundles SRV are drawn into empty as well as occupied cable ducts. With the internal eight speedpipe 10 x 1.0 mm up to two bundles can be drawn into an empty cable duct ⌀ 110 mm. Even in case of an occupancy with a cable up to ⌀ 50 mm the SRV optimally exploits the residual section for additional fibre optic cables. The comparison with a standard multi-duct MR4 regarding material and effort clearly is in favour of the bundle.
    Colour Orange (OG)
    Description 8 speedpipe 10x1.0
    Material Polyethylene, high density (PE-HD)
    PART DESCRIPTION SRV_50/8x10-PE-HD-OG
    Package Content 2300m
    Package Content packed in drum
    Product Family SRV 50/8x10
    Product Group speedpipe bundles for in-duct systems.
    Type SRV_50/8x10
    Variant DIN
    Weight/Unit 0.313kg
    Diameter (D) 50mm
    Length (L) 2300m
    Wall (WT) 0.5mm
    Country of Origin DE
    GTIN-13 / EAN 4031051084325
    Packaging 1 - Height (m) 2.4m
    Packaging 1 - Length (m) 2.4m
    Packaging 1 - Qty 2300
    Packaging 1 - Type drum
    Packaging 1 - Volume (m³) 6.912m³
    Packaging 1 - Weight (kg) 1069.9kg
    Packaging 1 - Width (m) 1.2m
    ETIM 7.0 Key EC000000
    ETIM 8.0 Key EC000000
    ETIM 9.0 Key EC000000
