Polyamide PA6.6
Art.-No. 170-03048 | BSPA66100B-PA66-BK |

Copied

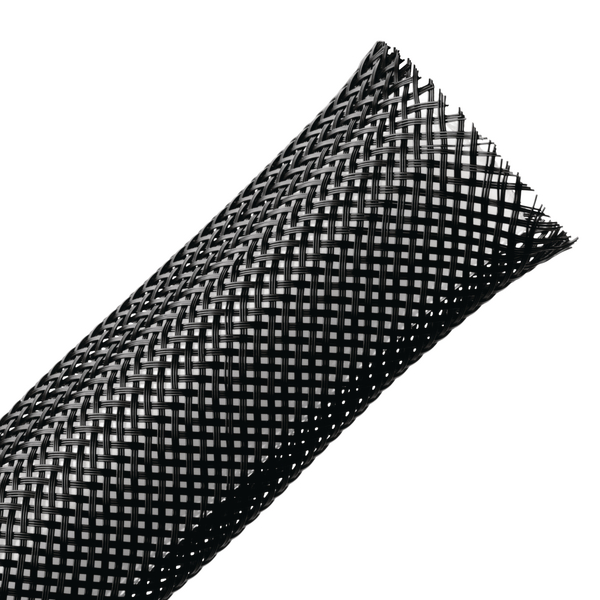

Expandable sleeving offers a tight, 12 mil braid that provides full coverage but will not rot or retain moisture.

    This product is not available anymore.
    • Nylon monofilament construction weave offers a tight, 12 mil braid that provides full coverage but will not rot or retain moisture
    • Material performs well in wet applications and where abiding substrate has a smooth surface
    Add to watchlist
    Downloads
    Colour Black (BK)
    Description A pliable yet durable nylon sleeve that protects against cuts, abrasion and excessive wear caused by repetitive motion.
    Material Polyamide 6.6 (PA66)
    Open, post termination (Yes/No) Yes
    PART DESCRIPTION BSPA66100B-PA66-BK
    Pack Cont. 76.20m
    Package Content packed in reel
    Product Group Polyamide PA6.6
    Type BSPA66100B
    ⌀ D 1.0"
    Bundle ⌀ 15.9-35.0mm
    Bundle ⌀ max. 35.0mm
    Bundle ⌀ min. 15.9mm
    Diameter (D) 25.4mm
    Length (L) 76.2m
    Nominal ⌀ 1"
    Nominal ⌀ 25.4mm
    Abrasion Resistance High
    CE Certification No
    CSA Certified No
    Halogen-free Yes
    Melting Point +255 °C
    Operating Temperature -45 °C to +150 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    Country of Origin US
    GTIN-13 / EAN 4031026436418
    Packaging 1 - Weight (kg) 1.81kg
    Reel Length 250.0ft
    Reel Length 76.2m
    ETIM 7.0 Key EC001182
    ETIM 8.0 Key EC001182
    ETIM 9.0 Key EC001182
    UNSPSC Key 39131602
