Racks and Cable Management
Art.-No. 854-44288 | T24PPR |

Copied
Rack features quick-release hinges to allow left or right side access.

    This product is not available anymore.
    Add to watchlist
    Downloads
    Colour Black (BK)

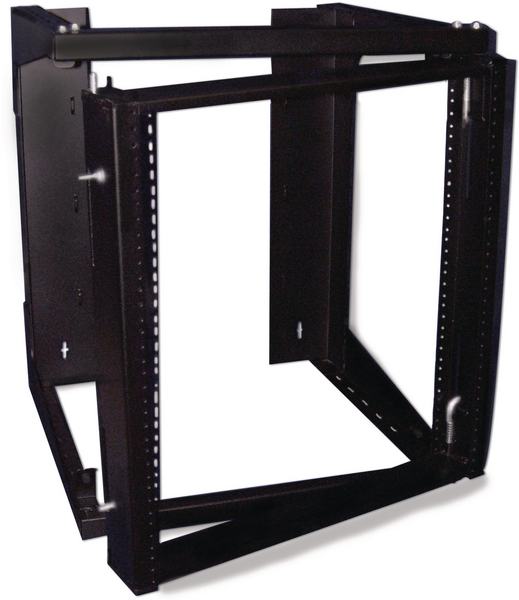

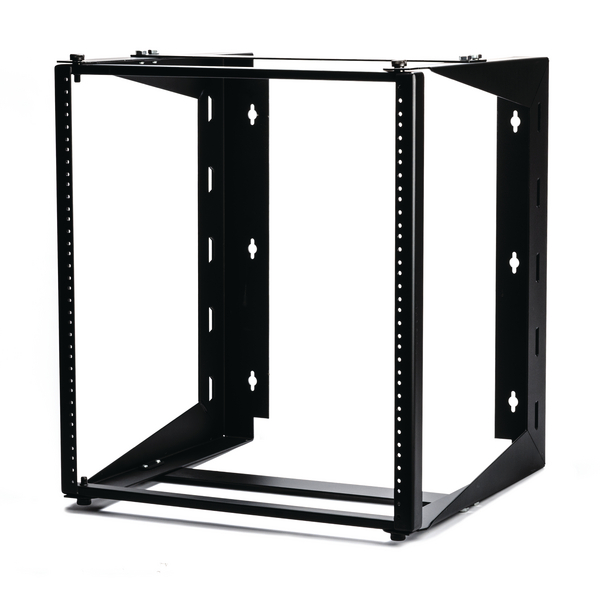

    Description Wall mount swing-out racks allow the equipment to swing-out for ease of wiring. Racks features a standard 19” EIA rack mount width and is equipped with 12-24 tapped holes on the front and rear flanges. Rack mounts on standard 16” wall stud spacing for ease of use and are equipped to support up to 120 pounds.
    Material Steel (ST)
    PART DESCRIPTION T24PPR
    Pack Cont. 1pc.
    Package Content packed in box
    Product Group Racks and Cable Management
    Type T24PPR
    Variant Rack
    Depth (D) 457.2mm
    Height (H) 609.60mm
    Height, Units 12U
    Width (W) 527.05mm
    CE Certification No
    CSA Certified No
    ROHS compliant No
    UV-Stabilised No
    Country of Origin US
    Dimensions W x H x D 527.05 mm x 609.60 mm x 457.2 mm
    ETIM 7.0 Key EC000264
    ETIM 8.0 Key EC000264
    ETIM 9.0 Key EC000264
    UNSPSC Key 43223308
