Labels for Laser Printers : TAG45L

Plain label, Article number: 594-45789

Features

  • Crisp and clear text, barcodes and graphics
  • Used to identify wide range of electrical and electronic products
  • Clear protective box to ensures labels stay as good as new
  • Simple and efficient label design and printing with TagPrint Pro software

Certifications & Approvals

Application

Ladder Rack / Conduit / Splice Enclosure

Colour White (WH)
Pack Cont. 5000
Package Quantity per pack
Paper Format Letter
PART DESCRIPTION TAG45L-789-WH
Product Family Plain label
Product Group Labels for Laser Printers
H printable 20.32mm
Height (H) 20.32mm
HR 38.10mm
HR 1.50"
Print Method Laser printer
Thickness (T) 64.0µm
Thickness of Foil 64µm
VR 0.8"
VR 20.32mm
Width (W) 101.6mm
Adhesive Acrylic
Adhesive Operating Temperature -40 °C to +150 °C
CSA Certified No
Curing Temperature +10 °C
Halogenfree No
Material Type 789, Polyester (PET)
Operating Temperature - °C -40 °C to +149 °C
Specifications
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
EAN / GTIN 4031026174891

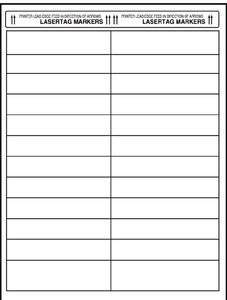

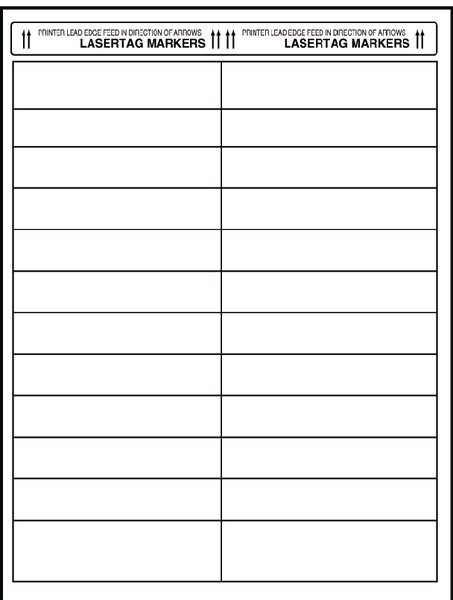

Labels per Column 12
Labels per Row 2
Labels per Sheet 24
Packaging 1 - Qty 5000
Packaging 1 - Weight (kg) 0.521kg
Packaging 2 - Qty 1
Packaging 3 - Qty 5000
Packaging 4 - Length (m) 1.20m
Packaging 4 - Type pallet
Packaging 4 - Width (m) 0.80m
Sheets per Pack 209
Weight 1.14lbs
Weight 0.521kg
ETIM 6.0 EC001530
ETIM 7.0 Key EC001530
UNSPSC Key 55121612
