Cable Ties Polyamide 6.6 standard : T50L

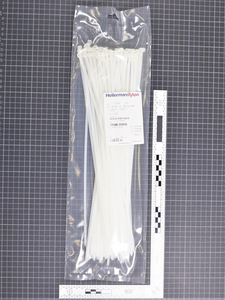

Cable Tie 390x4.6 naturalČíslo dílu: 111-05409
Vlastnosti
- Available in a wide range of materials and sizes
- High tensile strength with very low insertion force
- Only high quality plastic is used meeting recycling targets
- Inside serrated cable ties for a strong hold onto bundles
- Ergonomic bent tail offers quick and simple installation
- Easy application either manually or with an application tool
Certifikáty a normy
Použití
These cable ties are used for routing, bundling and securing of cables, pipes and hoses.
Více výrobků v této skupině výrobků
Cable Ties Polyamide 6.6 standard >| Application Tool | MK3PNSP2, MK3SP, EVOcut, MK7HT, MK7P, MK20, MK21, EVO7, EVO7SP, EVO9 |
| Colour | Natural (NA) |
| Identification Plate Position | none |
| Pack Cont. | 100pcs. |
| Package Quantity per | pcs. |
| PART DESCRIPTION | T50L-PA66-NA |
| Product Family | T-Series in PA66 natural |
| Product Group | Cable Ties Polyamide 6.6 standard |
| Releasable Closure (Yes/No) | No |
| Short Description | Cable Tie 390x4.6 natural |
| Tie Closure | plastic pawl |
| Type | T50L.NN3P |
| Variant | Inside Serrated |
|
|
|
| Bundle ∅ max. | 110mm |
| Bundle ∅ min. | 1.5mm |
| Length (L) | 390.0mm |
| Min.Tensile Strength | 225N |
| Thickness (T) | 1.4mm |
| Width (W) | 4.6mm |
| ELV compliant Dir. Art. 4 (2) | YES |
| Flammability | UL 94 V2 |
| Halogenfree | Yes |
| Hazardous good | No |
| Material | Polyamide 6.6 (PA66) |
| Operating Temperature - °C | -40 °C to +85 °C, (+105 °C, 500 h) |
| Specifications |
|
| Specifications | IEC 60092 series, IEC 62275:2006 |
|
|
|
| GTIN-13 / EAN | 5022660019029 |
| Packaging 1 - Height (m) | 0.035m |
| Packaging 1 - Length (m) | 0.441m |
| Packaging 1 - Qty | 100 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.00218m³ |
| Packaging 1 - Weight (kg) | 0.27kg |
| Packaging 1 - Width (m) | 0.141m |
| Packaging 3 - Height (m) | 0.204m |
| Packaging 3 - Length (m) | 0.591m |
| Packaging 3 - Qty | 4000 |
| Packaging 3 - Type | Carton |
| Packaging 3 - Volume (m³) | 0.048m³ |
| Packaging 3 - Weight (kg) | 11.602kg |
| Packaging 3 - Width (m) | 0.398m |
| Packaging 4 - Height (m) | 1.164m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 80000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.117m³ |
| Packaging 4 - Weight (kg) | 253.04kg |
| Packaging 4 - Width (m) | 0.8m |
| ETIM 6.0 | EC000046 |
| ETIM 7.0 Key | EC000046 |
