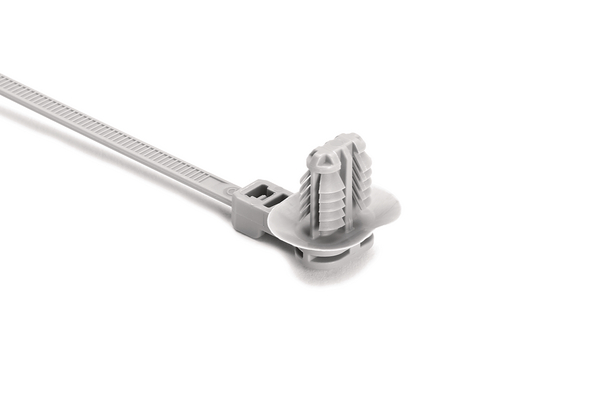

Fixing tie for hole (oval), outside serrated, ⌀2.0-50.0mm, grey, 500pcs.
Číslo dílu 157-00225
| T50ROSFTOVAL12.5A-PA66HIRHS-GY
|
Copied
- Bundling and fixing solution
- Ideal combination of materials and design
- Different positions of the fixing anchor are available to fit installation space
- 1-Piece Fixing Tie with defined offset 12.5 and 25.0 mm
Vyžádat nabídku
Více výrobků v této skupině výrobků:
1-piece fixing ties with fir tree, with disc, with stand-off, for oval holes
| Colour | Grey (GY) |
| Fixation Method | Fir Tree for oval holes |
| Identification Plate Position | none |
| Material | Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS) |
| Min.Tensile Strength | 225N |
| PART DESCRIPTION | T50ROSFTOVAL12.5A-PA66HIRHS-GY |
| Package Content | 500pcs. |
| Package Content packed in | pack |
| Product Family | with offset 12.5 and 25.0 mm |
| Product Group | 1-piece fixing ties with fir tree, with disc, with stand-off, for oval holes |
| Releasable Closure (Yes/No) | No |
| Type | T50ROSFTOVAL12.5A |
| UV-Stabilised | Yes |
| Variant | Outside Serrated |
| Weight/Unit | 0.01kg |
| Bundle ⌀ | 2.0-50.0mm |
| Bundle ⌀ max. | 50.0mm |
| Bundle ⌀ min. | 2.0mm |
| Disc ⌀ | 17.63 x 23.63mm |
| Fixing Hole Shape | Oval |
| Height (H) | 13.15mm |
| Hole Depth | 0.6mm |
| Hole Depth | 6.75mm |
| Length (L) | 215.9mm |
| Length (L2) | 12.5mm |
| Offset Length | 12.5mm |
| Panel Thickness | 0.6 - 6.75mm |
| Thickness (T) | 1.35mm |
| Width (W) | 4.70mm |
| for Hole ⌀ (FH) | 6.2 x 12.2 mm, 6.5 x 12.5 mm, 6.5 x 13.0 mm, 7.0 x 12.0 mm |
| for Panel Thickness min - max | 0.6 - 6.8 mm |
| for Panel Thickness min - max | 0 - 0.3 " |
| CE Certification | No |
| CSA Certified | No |
| ELV compliant (Article 4 - 2) | Yes |
| Flammability | UL 94 HB |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +105 °C |
| Operating Temperature, 1000h | +160 °C |
| Operating Temperature, 5000h | +125 °C |
| Operating Temperature, 500h | +165 °C |
| ROHS compliant | Yes |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
| Country of Origin | MX |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026500829 |
| Packaging 1 - Qty | 500 |
| Packaging 1 - Type | bag |
| Packaging 1 - Weight (kg) | 5.000001kg |
| Packaging 3 - Height (m) | 0.219075m |
| Packaging 3 - Length (m) | 0.6064m |
| Packaging 3 - Qty | 2000 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.0529m³ |
| Packaging 3 - Weight (kg) | 20.000004kg |
| Packaging 3 - Width (m) | 0.3984625m |
