Pinched End Caps : PEC-9/3

Pinched End Cap 3:1 9/3 for Low Voltage black, Číslo dílu: 416-00002

Vlastnosti

  • Small size End Caps
  • Fast and easy application
  • With Inner adhesive layer for moisture sealing
  • 3:1 shrink ratio
  • Different diameters for wide application range
  • Other lengths available on request

Certifikáty a normy

Použití

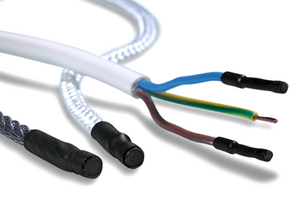

Pinched End Caps can be used for mechanical and
environmental protection of stub splices in electrical
harnesses. Due to the fast and easy installation, these caps can be used for non-electrical applications as well.

Helashrink PEC Series, low voltage je vhodný pro následující odvětví průmyslu

Application Tool E4500
Colour Black (BK)
Pack Cont. 50pcs.
Package Quantity per Bag
PART DESCRIPTION PEC-9/3-PO-X-BK
Product Family Helashrink PEC Series, low voltage
Product Group Pinched End Caps
Short Description Pinched End Cap 3:1 9/3 for Low Voltage black
Shrink Ratio 3:1

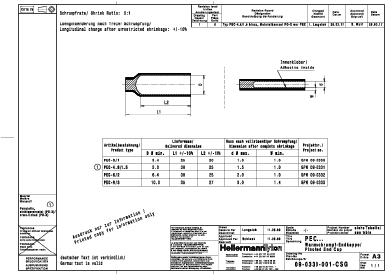

Length (L) 35.0mm
Length (L2) 27.0mm
Longitudinal Change After Shrinkage -10 % max.
P ± 10% 35.0mm
Recov. ∅ d 3.0mm
Recov. ∅ d max. (imperial) .12"
Supplied ∅ D 9.0mm
Supplied ∅ D min. (imperial) .35"
Thickness of Adhesive (TA) nom. 0.6mm
Tolerance +/- ±10%
Tube Shape Round
Wall (WT) 1.4mm
Wall (WT) (imperial) .06"
Dielectric Strength 15 kV/mm
Elongation at break >300%
ELV compliant Dir. Art. 4 (2) YES
Flammability self-extinguishing in 30 seconds according to SAE-AMS-DTL-23053/4
Hazardous good No
Insulation Class A (VDE 0530)
Material Polyolefin, cross-linked (PO-X)
Minimum Shrink Temperature - °C +120 °C
Operating Temperature - °C -45 °C to +125 °C
Softening Point Adhesive +85 °C
Specifications
Tensile Strength 10.4MPa
UL Recognized (US and Canada) No
Volume Resistance 10¹⁴ Ω cm
EAN / GTIN 4031026323275
Packaging 1 - Height (m) 0.03m
Packaging 1 - Length (m) 0.2m
Packaging 1 - Qty 50
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.0006
Packaging 1 - Weight (kg) 0.055kg
Packaging 1 - Width (m) 0.1m
Packaging 2 - Height (m) 0.088m
Packaging 2 - Length (m) 0.4m
Packaging 2 - Qty 1000
Packaging 2 - Type Carton
Packaging 2 - Volume (m³) 0.012
Packaging 2 - Weight (kg) 1.1kg
Packaging 2 - Width (m) 0.34m
Packaging 3 - Height (m) 0.27m
Packaging 3 - Length (m) 0.6m
Packaging 3 - Qty 6000
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0648
Packaging 3 - Weight (kg) 9.9kg
Packaging 3 - Width (m) 0.4m
Weight 0.052kg
ETIM 6.0 EC000218
ETIM 7.0 Key EC000218
