RFID label, 860-960 MHz (UHF), white, 110.00x13.00mm, 800pcs.
Číslo dílu 556-00841 | TAG110x13T1UHFM-1601-WH Podrobnosti na

  • The adhesive label with integrated RFID transponder is ideal for the clear identification and digitized management of mobile and stationary equipment, raw materials and semi-finished or finished products.

Vyžádejte si nyní individuální nabídku

Application This adhesive label with integrated RFID transponder is ideal for clear identification and digital management of mobile and fixed equipment, raw materials and semi-finished or finished products. Thanks to the so-called UID (Unique Identifier, Unique Identification Number) and its integrated and freely usable data memory, objects can be easily inventorised and tracked within the framework of asset management (resource management) or the manufacturing execution system (production control system) (tracking , traceability) as well as monitored and managed. With the help of an IT infrastructure, specific information can be assigned to each individual object or location, which can be called up as required and thus serve to optimise processes. This has an immediate positive effect on process costs.
Application Method The functionality and durability of the labels can be negatively affected if improperly processed or applied. All surfaces to be bonded must be clean, dry as well as free from dust and grease. Avoid touching the adhesive surface of the label as this could impair the application performance.
Application Tool TT431, TT4030
Colour White (WH)
Description Ultra High Frequency (UHF)
Fixation Method adhesive
Key product features detectable
Material Type 1601, Polyester (1601)
Pack Cont. 800pcs.
Package Content packed in reel
PART DESCRIPTION TAG110x13T1UHFM-1601-WH
Product Family RFID labels type 1601 and 1602– Ultra high frequency (UHF)
Product Group Adhesive labels with integrated RFID transponder, thermal transfer
Removable No
Self adhesive (Yes/No) Yes
Short Description RFID adhesive label 110x13 mm UHF white
Frequency 860-960 MHz (UHF)

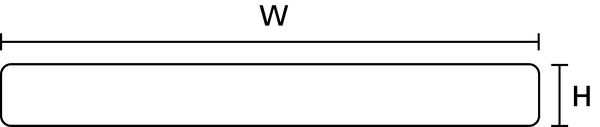

Height (H) 13.00mm
Length (L2) 110mm
Print Method thermal transfer print
Thickness (T) 1.10mm
Weight/Unit 0.0003kg
Width (W) 110.00mm
Curing Temperature from +15 °C
ELV compliant (Article 4 - 2) YES
Hazardous Goods No
IP-Rating Other
Operating Temperature -40 °C to +85 °C
Recommended Ribbon Type TT822OUT
Shelf Life 12 months
Specifications
Tamper proof No
Country of Origin DE
Customs Number 85235910
GTIN-13 / EAN 4031026659404
Packaging 1 - Height (m) 0.018m
Packaging 1 - Length (m) 0.2m
Packaging 1 - Qty 800
Packaging 1 - Type reel
Packaging 1 - Volume (m³) 0.00072
Packaging 1 - Weight (kg) 0.24kg
Packaging 1 - Width (m) 0.2m
ETIM 7.0 Key EC002996
ETIM 8.0 Key EC002996
ETIM 9.0 Key EC002996
