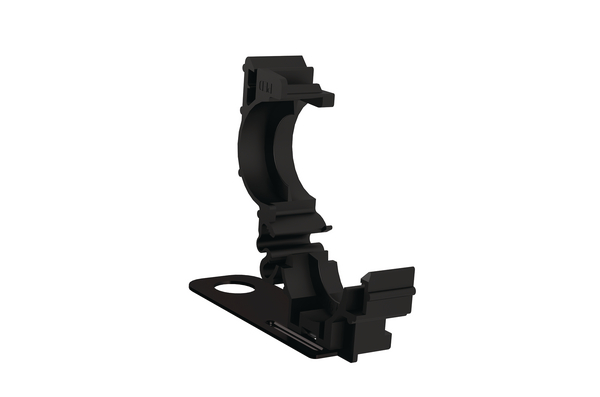

Corrugated tube clip for screw fixation/with pipe/tube holder, black, 250pcs.
Art.-No. 151-02603 | CDC16S40.5M10-PA66HIRHS-BK |  Details

Living hinge allows placement and positioning of tubing before locking in place.

    Add to watchlist
    Downloads
    Colour Black (BK)
    Fixation Method screwable
    Key product features for convoluted tubes or with rib
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    Mounting Screw Type M10 Screw
    Pack Cont. 250pcs.
    Package Content packed in carton
    PART DESCRIPTION CDC16S40.5M10-PA66HIRHS-BK
    Attach to Ø 16mm
    Bundle Diameter max (metric) 16.0mm
    Bundle ∅ 16.0mm
    Diameter (D) 17.4mm
    for Hole ∅ (FH) 10.6 mm
    Height (H) 61.9mm
    Length (L) 68.3mm
    Offset Length 40.5mm
    Stud ∅ M10
    Stud ∅ M10"
    Width (W) 23mm
    ∅ (D2) 24.2mm
    ∅ D 0.69"
    ∅ D2 0.95"
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free No
    Hazardous Goods No
    Operating Temperature -40 °C to +110 °C
    Specifications
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised No
    Country of Origin MX
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
