151-04015

Sustainable
Source products are manufactured with plastics recovered from recycled waste or marine environments, derived from renewable plant-based sources, or use materials with lower equivalent emissions. HellermannTyton also offers product solutions that – by design – reduce waste or support reusability and recyclability.<br/>Sustainable design focuses on product solutions that reduce or avoid waste, i.e. products that can be completely or partially dismantled and repositioned, thus supporting reuse and recyclability. Longevity is not part of this.
Source products are manufactured with plastics recovered from recycled waste or marine environments, derived from renewable plant-based sources, or use materials with lower equivalent emissions. HellermannTyton also offers product solutions that – by design – reduce waste or support reusability and recyclability.
Sustainable design focuses on product solutions that reduce or avoid waste, i.e. products that can be completely or partially dismantled and repositioned, thus supporting reuse and recyclability. Longevity is not part of this.

Base Data

Colour Black (BK)
Fixation Method Magnet
For Ties T18
Magnetic pull strength (kgf) 2.24
Magnetic pull strength (lb/ft) 5lbf-ft
Magnetic pull strength (N) 22N
Material Neodymium alloy 35M (NDFEB35M), Polyacetal (POM), Steel (ST)
Package Content 10pcs.
Package Content packed in pack

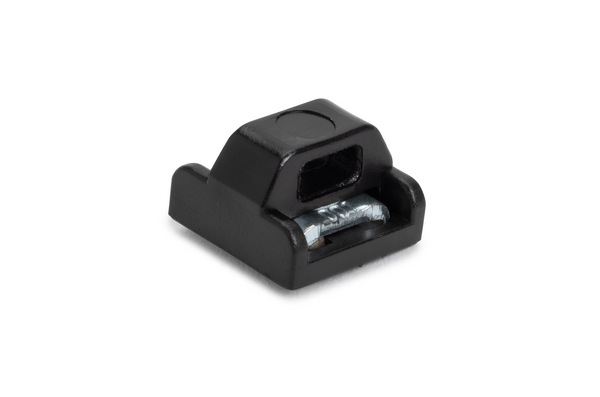

PART DESCRIPTION MAGCTM5M-NDFEB35M/POM/ST-BK
Rotation (°) 0°

Product Dimensions

Height (H) 10.5mm

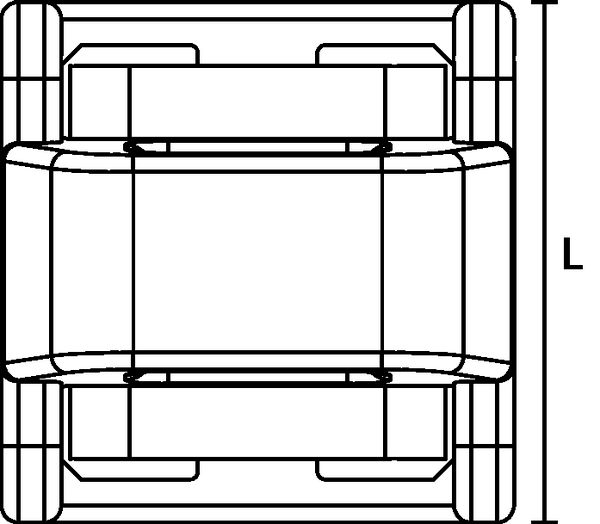

Length (L) 15.3mm
Strap Width max. (G) 6.3mm
Strap Width max. (G) 0.25"

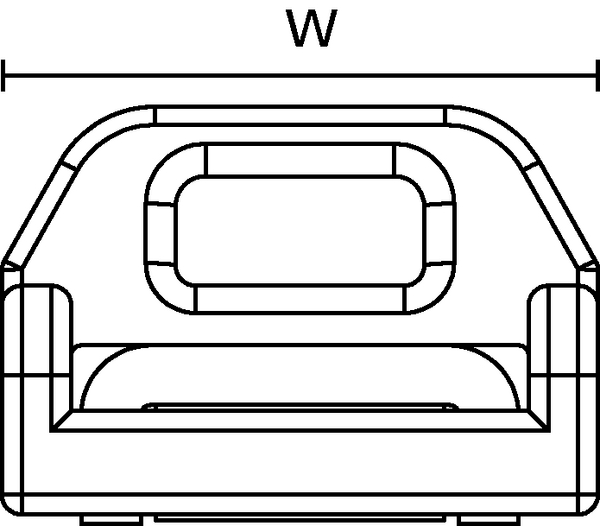

Width (W) 15mm

Specifications

CE Certification No
CSA Certified No
Halogen-free Yes
Operating Temperature -40 °C to +80 °C
Plenum Rating AH-2
Reusable (Yes/No) Yes
Specifications
UL Listed (US) Yes
UL Recognized (US) No
UL-File Number E64139

Logistics and Packaging

Country of Origin MX
GTIN-13 / EAN 4031026730233
Packaging 1 - Qty 10
Packaging 1 - Type pack

More Information

ETIM 7.0 Key EC000449
ETIM 8.0 Key EC000449
ETIM 9.0 Key EC000449
UNSPSC Key 39121703
