151-04038

Sustainable
Source products are manufactured with plastics recovered from recycled waste or marine environments, derived from renewable plant-based sources, or use materials with lower equivalent emissions. HellermannTyton also offers product solutions that – by design – reduce waste or support reusability and recyclability.<br/>Sustainable design focuses on product solutions that reduce or avoid waste, i.e. products that can be completely or partially dismantled and repositioned, thus supporting reuse and recyclability. Longevity is not part of this.
Source products are manufactured with plastics recovered from recycled waste or marine environments, derived from renewable plant-based sources, or use materials with lower equivalent emissions. HellermannTyton also offers product solutions that – by design – reduce waste or support reusability and recyclability.
Sustainable design focuses on product solutions that reduce or avoid waste, i.e. products that can be completely or partially dismantled and repositioned, thus supporting reuse and recyclability. Longevity is not part of this.

Base Data

Colour Metal (ML)
Fixation Method Magnet
Magnetic pull strength (kgf) 40.79
Magnetic pull strength (lb/ft) 90lbf-ft
Magnetic pull strength (N) 400N
Material Neodymium alloy 45M (NDFEB45M), Steel (ST)
Package Content 100pcs.
Package Content packed in pack

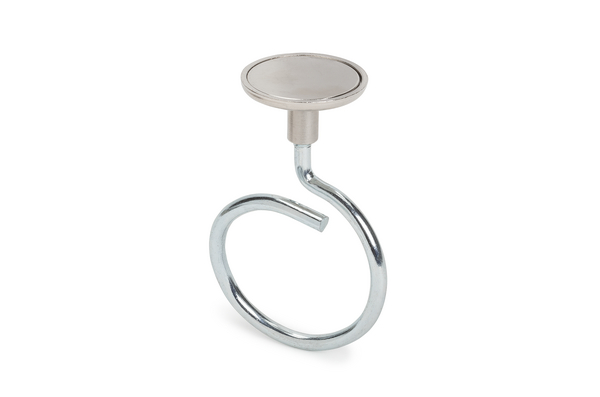

PART DESCRIPTION MAGBR90L-NDFEB45M/ST-ML
Rotation (°) 0°
UV-Stabilised No

Product Dimensions

⌀ D 1.57"
Bundle Diameter Nom. (ND) 50.8 mm
Diameter (D) 40mm
Height (H) 97.63mm

Specifications

CE Certification No
CSA Certified No
Halogen-free Yes
Operating Temperature -40 °C to +80 °C
Plenum Rating AH-2
Reusable (Yes/No) Yes
Specifications
UL Listed (US) No
UL Recognized (US) No

Logistics and Packaging

Country of Origin US
GTIN-13 / EAN 4031026730288
Packaging 1 - Qty 100
Packaging 1 - Type pack

More Information

ETIM 7.0 Key EC000127
ETIM 8.0 Key EC000127
ETIM 9.0 Key EC000127
UNSPSC Key 39121703
