SRV-G 40/14x7
Art.-No. 872-00003 | SRV-G_40/14x7-PE-HD-OG |  Details

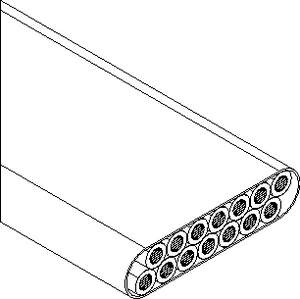

speedpipe bundles ground SRV-G with EZA-t and Shi for in-duct installations.

    Add to watchlist
    Show all
    Application The higher permissible tensile strength of speedpipe ground especially pays off in case of a tight relation of the existing capacity to the outer diameter of the speedpipe. Nevertheless for being able to use the remaining space, a cutting device removes the lose duct coat before the pulling-in process. A pulling head that is mounted directly at the ends of the speedpipe fixes the single tubes and guarantees the optimum use of force – without taking up more space inside the duct. Thus also bundles with more than eight speedpipe inside or additional single tubes can be linearly fed into the duct system.
    Colour Orange (OG)
    Description 14 speedpipe ground 7x1.5
    Material Polyethylene, high density (PE-HD)
    Pack Cont. 3500m
    Package Content packed in drum
    PART DESCRIPTION SRV-G_40/14x7-PE-HD-OG
    Product Family SRV-G 40/14x7
    Product Group thick-walled speedpipe ground single ducts in connection: SRV-G
    Variant DIN
    Diameter (D) 40mm
    Length (L) 3500m
    Wall (WT) 0.5mm
    Weight/Unit 0.423kg
    Country of Origin DE
    GTIN-13 / EAN 4031051023638
    Packaging 1 - Height (m) 2.4m
    Packaging 1 - Length (m) 2.4m
    Packaging 1 - Qty 3500
    Packaging 1 - Type drum
    Packaging 1 - Volume (m³) 6.912m³
    Packaging 1 - Weight (kg) 1830.5kg
    Packaging 1 - Width (m) 1.2m
    ETIM 7.0 Key EC000000
    ETIM 8.0 Key EC000000
    ETIM 9.0 Key EC000000
