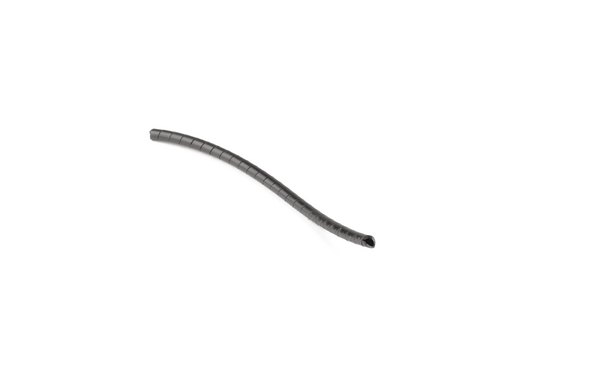

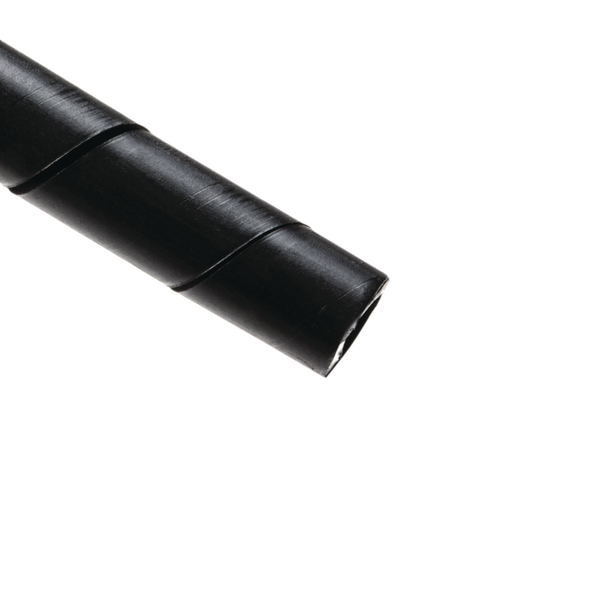

Cable Organizer
Art.-No. 161-05000 | 1FRP-PE-FR-BK Details

  • Used for organising and protecting wires, cables and tubes
  • Available in a wide range of diameters and colours
  • Can be fitted onto cables, wires or tubes in situ
  • Wires can branch out at any point and in any direction
Colour Black (BK)
Material Polyethylene, flame retardant (PE-FR)
Pack Cont. 30.48m
Package Content packed in reel
PART DESCRIPTION 1FRP-PE-FR-BK
Product Group Cable Organizer
Variant Spiral Binding
Bundle Diameter max (metric) 12.7mm
Bundle ∅ 1.6-12.7mm
Bundle ∅ min. 1.6mm
Diameter (D) 3.18mm
Length (L) 30.48m
Nominal ∅ 3.18mm
Nominal ∅ 0.13"
Pitch (P) 4.75mm
Pitch (P) 0.187"
Wall (WT) 0.81mm
Wall (WT) .032"
∅ D 0.125"
CE Certification No
CSA Certified No
Flammability UL 94 V2
Halogen-free No
Operating Temperature -20 °C to +80 °C
Specifications
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UV-Stabilised (Yes/No) No
Country of Origin US
GTIN-13 / EAN 4031026718651
Reel Length 30.48m
Reel Length 100.0ft
ETIM 7.0 Key EC002604
ETIM 8.0 Key EC002604
ETIM 9.0 Key EC002604
UNSPSC Key 39131604
