28/03/2024

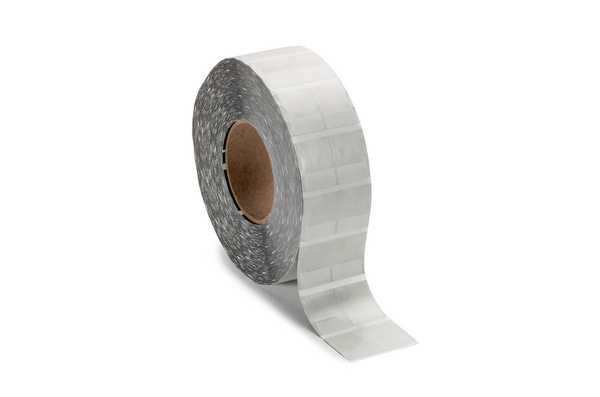

Cable label, self laminating, weather resistant/chemical resistance, white, thermal transfer print, 25.4mm, H2=36.32mm, 5000pcs.
Art.-No. 596-00006 | TAG22T2-100B-WH Details

  • Ideal for marking and identification of wires and cables
  • Clear self laminating film wraps around the cable to protect marks from dirst and abrasion
  • Excellent UV and temperature resistance
  • Ideal for both internal and external application
Application The use of our specially formulated adhesive labels printed on thermal transfer printers give the highest quality print clarity. The range of materials are complemented by ribbons developed to suit the needs of most users. The production of labels is very simple. All that is needed is the required label to be selected from our industry leading software TagPrint Pro.
Chem. Material Properties Good for most petroleum solvents and low aliphatic alcohols. Not good for most esters and acetones. Water resistant.
Colour White (WH)
Colour Marking Field White (WH)
For Wire Type 4 Pair UTP, RG6 & RG59 Coax
Key product features weather resistant, chemical resistance
Material Type 100B (100B)
Pack Cont. 5000pcs.
Package Content packed in roll
PART DESCRIPTION TAG22T2-100B-WH
Product Family Self Laminating Labels
Product Group Adhesive Labels
Bundle Diameter max (metric) 6.35mm
Bundle ∅ 3.04-6.35mm
Bundle ∅ min. 3.04mm
H printable 12.7mm
Height (H2) 36.32mm
HR 27.17mm
HR 1.07"
Print Method thermal transfer print
Thickness (T) 75µm
VR 1.62"
VR 41.28mm
Width (W) 25.4mm
Width of Liner (WL) 57.1mm
Width of LIner (WL) 2.25"
Adhesive Acrylic
Adhesive Operating Temperature -46 °C to +93 °C
CE Certification No
CSA Certified No
Curing Temperature +10 °C
Halogen-free No
Operating Temperature -40 °C to +96 °C
Specifications
Specifications UL-Recognized
UL Listed (US and Canada) No
UL OCD link Link Link
UL Recognized (US and Canada) Yes
UL-File Number MH18396
UV-Stabilised (Yes/No) No
Country of Origin US
GTIN-13 / EAN 4031026727011
Labels per Column 1
Labels per Row 2
Packaging 1 - Weight (kg) 1.176kg
ETIM 7.0 Key EC001530
ETIM 8.0 Key EC001530
ETIM 9.0 Key EC001530
UNSPSC Key 55121612
