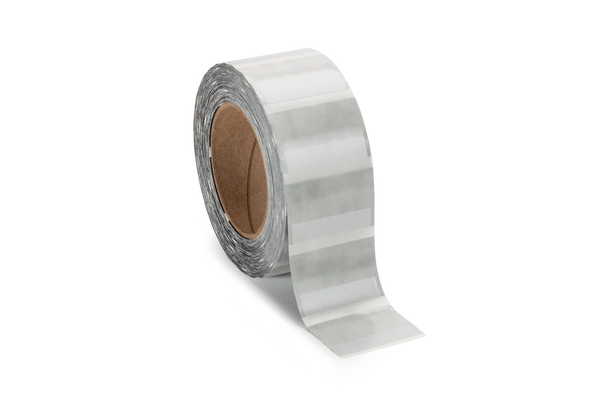

Cable label, self laminating, weather resistant/chemical resistance, white, thermal transfer print, 12.7x50.8mm, H2=36.32mm, 1000pcs.
Art.-No. 596-00008 | TAG24T1-100B-WH |

Copied
Helatag 101 – unique packaging ensures outstanding label protection.

    • Ideal for marking and identification of wires and cables
      Clear self laminating film wraps around the cable to protect marks from dirst and abrasion
      Excellent UV and temperature resistance
      Ideal for both internal and external application
    Add to watchlist
    Downloads
    Application The use of our specially formulated adhesive labels printed on thermal transfer printers give the highest quality print clarity. The range of materials are complemented by ribbons developed to suit the needs of most users.
    The production of labels is very simple. All that is needed is the required label to be selected from our industry leading software TagPrint Pro.
    Chem. Material Properties Good for most petroleum solvents and low aliphatic alcohols. Not good for most esters and acetones. Water resistant.
    Colour White (WH)
    Key product features weather resistant, chemical resistance
    Material Type 100B (100B)
    PART DESCRIPTION TAG24T1-100B-WH
    Package Content 1000pcs.
    Package Content packed in pack
    Print Method thermal transfer print
    Product Family Self Laminating Labels
    Product Group Adhesive Labels
    Type TAG24T1
    UV-Stabilised Yes
    Bundle ⌀ 3.80-7.37mm
    Bundle ⌀ max. 7.37mm
    Bundle ⌀ min. 3.80mm
    H printable 12.7mm
    HR 2.0"
    HR 50.8mm
    Height (H) 12.7mm
    Height (H2) 36.32mm
    Thickness (T) 25µm
    Thickness of Foil 190.5
    VR 42.6mm
    VR 1.68"
    Width (W) 50.8mm
    Width of LIner (WL) 2.2"
    Width of Liner (WL) 55.88mm
    Adhesive Acrylic
    Adhesive Operating Temperature -46 °C to +93 °C
    CE Certification No
    CSA Certified No
    Curing Temperature +10 °C
    Halogen-free Yes
    Operating Temperature -40 °C to +96 °C
    ROHS compliant Yes
    Specifications
    Specifications UL-Recognized
    UL File link Link Link
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) Yes
    UL-File Number MH18396
    Country of Origin US
    GTIN-13 / EAN 4031026667904
    Labels per Column 1
    Labels per Row 1
    Packaging 1 - Type pack
    Packaging 1 - Weight (kg) 1.176kg
    ETIM 7.0 Key EC001530
    ETIM 8.0 Key EC001530
    ETIM 9.0 Key EC001530
    UNSPSC Key 55121612
