TD-N-25X25
Art.-No. 185-30018 | TD-N-25X25 |

Copied

    This product is not available anymore.
    Add to watchlist
    Application In switching systems, particularly at high operating temperatures or in the case of high demands on fire prevention and protection e.g. on ships, in elevator or railway vehicle construction.
    Current leak stable Yes/No Yes
    Fixation Method Screw Mounting
    PART DESCRIPTION TD-N-25X25
    Package Content packed in metre
    Type TD-N-25X25
    Type of side wall Slotted

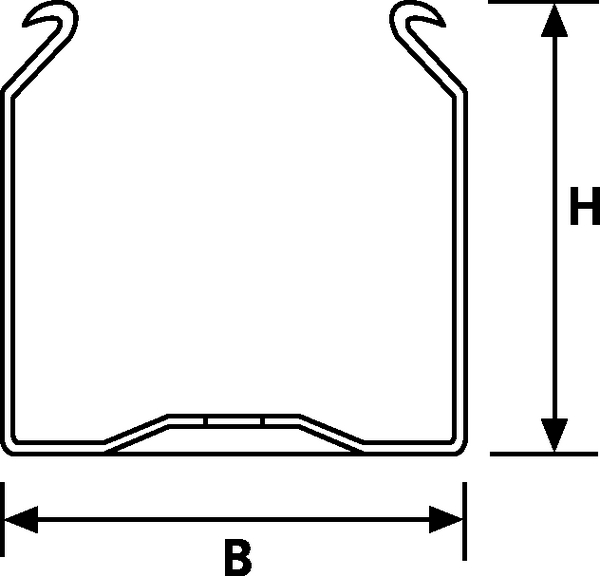

    Height (H) 25mm
    Width (W) 25mm
    Width (W3) 8mm
    ROHS compliant Yes
    Specifications
    Country of Origin DE
    GTIN-13 / EAN 4031026127866
    Packaging 1 - Qty 128
    Packaging 1 - Weight (kg) 19.2000kg
    Packaging 2 - Qty 1
    Packaging 3 - Qty 128
    Packaging 3 - Weight (kg) 19.20kg
    Packaging 4 - Length (m) 1.20m
    Packaging 4 - Type pallet
    Packaging 4 - Width (m) 0.80m
    ETIM 7.0 Key EC000012
    ETIM 8.0 Key EC000012
    ETIM 9.0 Key EC000012
    UNSPSC Key 39131712

    Wiring ducts and accessories from HelaDuct: optimum protection for cables and fitters.

    Discover the advantages of HelaDuct wiring ducts system solutions with its special space-saving shapes: these unique wiring ducts are designed for height and give you more lateral space. They come with blunted edges that protect the cable insulation and make them safer to work with during installation and maintenance. HelaDuct products are used in switch cabinets and switching stations and are very well suited to cables with small cross sections.
