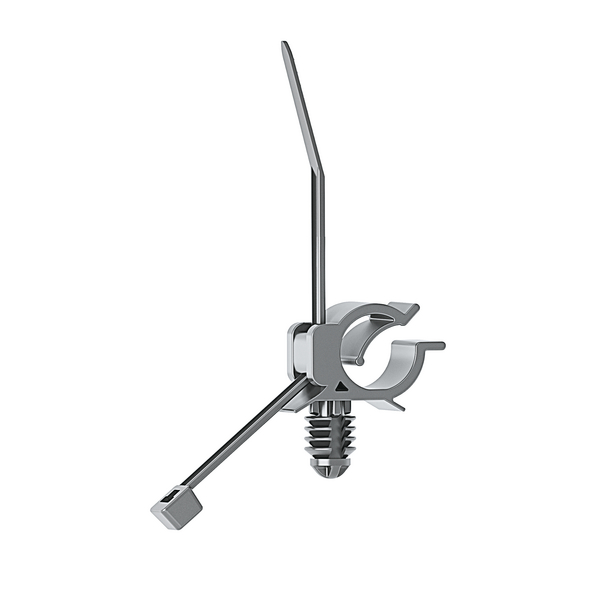

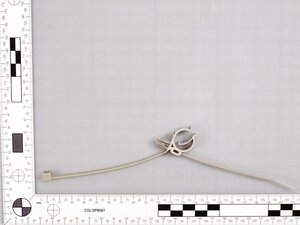

Fixing tie with pipe/tube holder/for hole (round), outside serrated, Ø1.0-45.0mm, grey, 500pcs.
Art.-No. 156-01576 | T50RCTCFT6-PA46-GY |  Details

    • For post-installation of additional cables for pre-assembled cable looms
    • Variety of twist angles and even different loop directions provide flexibility for cable routing
    • For OC1 and 2A additional cable tie dimensions are available
    • CBTO-series for cable ties up to 5 mm
    Add to watchlist
    Downloads
    Application Tool ProCut 9 no battery, MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7, EVO7SP, EVO7i, EVO7iSP, EVO9, EVO9SP, EVO9i, EVO9iSP
    Colour Grey (GY)
    Fixation Method Omega Clip
    Identification Plate Position none
    Key product features rotatable, for multiple routing, removable
    Material Polyamide 4.6 (PA46)
    Pack Cont. 500pcs.
    Package Content packed in bag
    PART DESCRIPTION T50RCTCFT6-PA46-GY
    Product Group 2-piece fixing ties with pipe clip
    Attach to Ø 11.0 - 15.0mm
    Bundle Diameter max (metric) 45.0mm
    Bundle ∅ 1.0-45.0mm
    Bundle ∅ min. 1.0mm
    for Hole ∅ (FH) 6.3 - 6.7 mm
    for Panel Thickness min - max 0.7 - 4.5 mm
    Length (L) 200.0mm
    Weight/Unit 0.00359kg
    Width (W) 4.6mm
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    Specifications
    Country of Origin FR
    Customs Number 39269097
    GTIN-13 / EAN 4031026543734
    Packaging 1 - Height (m) 0.12m
    Packaging 1 - Length (m) 0.44m

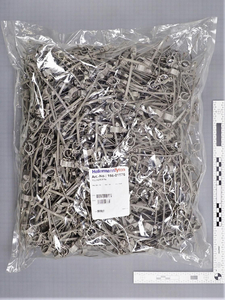

    Packaging 1 - Qty 500
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.02059m³
    Packaging 1 - Weight (kg) 1.838597kg
    Packaging 1 - Width (m) 0.39m
    Packaging 3 - Height (m) 0.538m
    Packaging 3 - Length (m) 0.584m
    Packaging 3 - Qty 3000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.1213m³
    Packaging 3 - Weight (kg) 12.131582kg
    Packaging 3 - Width (m) 0.386m
    Packaging 4 - Height (m) 1.221m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 24000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.172m³
    Packaging 4 - Weight (kg) 118.072kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121702
