Cable tie tool for 4.8-13.5mm, manual, 0.373kg, red/black
Art.-No. 110-80001 | EVO9SP-MET/PL-BK/RD Details

  • Standard grip span (90 mm) and short grip span (80 mm) available
  • Ergonomic, slip-proof handle for a comfortable and secure grip
  • Extremely low-maintenance
  • Fast and precise application with minimum effort (TLC-technology)
  • Convenient and simple tension adjustment
  • Integrated 3 position quick adjustment override (EVO9/EVO9SP/EVO9HT)
  • Housing made of resilient and lightweight glass fibre-reinforced polyester
Show more

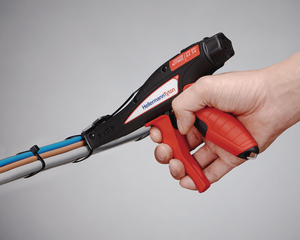

Application The EVO9 is available in a standard grip span 90 mm (EVO9) or short grip span 80 mm (EVO9SP), for smaller hands. Both tools perform between 53 N and 307 N. The EVO9HT (high tension) was designed to apply HellermannTyton cable ties from 120 N until 516 N with a maximum width of 13.5 mm.
Colour Red (RD), Black (BK)
For Cable Tie Width 0.18-0.53"
For Cable Tie Width 4.8-13.5mm
For Ties T50, T80, T120, T150, T250, T255, WS, LK2, LK3, LK5, GL, ECO Series
Material Metal (MET), Plastic (PL)
Operation manual
PART DESCRIPTION EVO9SP-MET/PL-BK/RD
Pack Cont. 1pc.
Package Content packed in carton
Product Family EVO9 up to 13.5 mm strap width
Product Group Manual tensioning tool plastic housing
Strap Thickness max. 0.08"
Strap Thickness max. 2.0mm
Technical Description Short Hand Span 80mm
Tool property Manual clipping
Tool suitable cable tie material Plastic
Type EVO9SP
Height (H) 135mm
Length (L) 191mm
Strap Width max. 13mm
Strap Width max. (G) 0.5"
Weight/Unit 0.373kg
Width (W) 33mm
CE Certification No
CSA Certified No
ROHS compliant Yes
Specifications
UL Listed (US and Canada) No
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UL Recognized (US and Canada) No
UV-Stabilised No
Country of Origin US
GTIN-13 / EAN 4031026511290
Packaging 1 - Weight (kg) 0.36kg
ETIM 7.0 Key EC000453
ETIM 8.0 Key EC000453
ETIM 9.0 Key EC000453
UNSPSC Key 27112410
