Fixing tie for stud, inside serrated, ⌀1.5-35.0mm, black, 3000pcs.
Art.-No. 133-00412 | T50SKL-M6-SET-PA66HS/PA66HIRHS-BK |

Copied

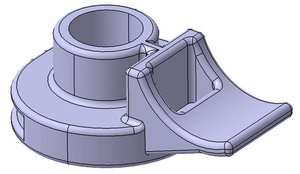

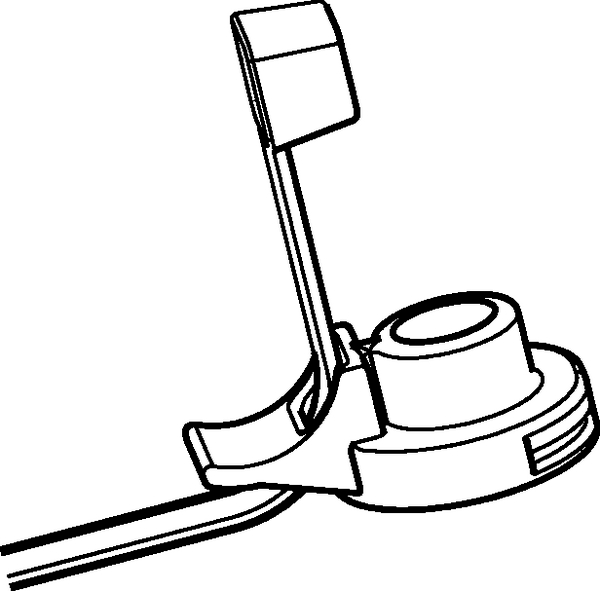

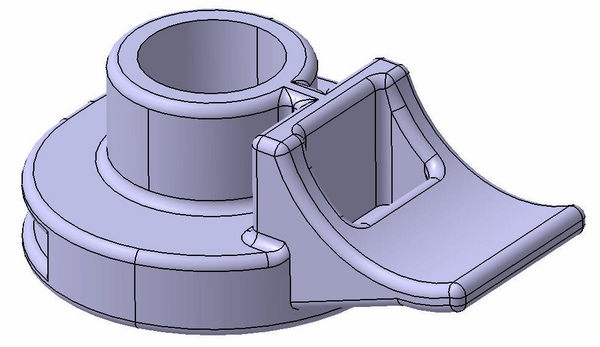

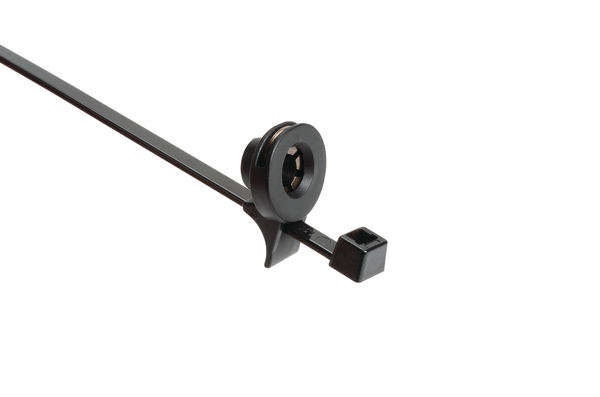

Two-piece self-affixing cable tie with stud mount.

    Add to watchlist
    Downloads
    Colour Black (BK)
    Fixation Method Weld Stud Fixing
    Identification Plate Position none
    Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION T50SKL-M6-SET-PA66HS/PA66HIRHS-BK
    Pack Cont. 3000pcs.
    Package Content packed in box
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type T50SKL-M6-SET
    Bundle ⌀ 1.5-35.0mm
    Bundle ⌀ max. 35.0mm
    Bundle ⌀ min. 1.5mm
    Length (L) 160.0mm
    Min.Tensile Strength 225N
    Stud ⌀ 6.0 mm
    Weight/Unit 0.0025kg
    Width (W) 4.6mm
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    ROHS compliant Yes
    Specifications
    Country of Origin PL
    Customs Number 39269097
    GTIN-13 / EAN 4031026298870
    Packaging 1 - Type bag
    Packaging 3 - Height (m) 0.184m
    Packaging 3 - Length (m) 0.58m
    Packaging 3 - Qty 3000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0406m³
    Packaging 3 - Weight (kg) 8.1kg
    Packaging 3 - Width (m) 0.38m
    Packaging 4 - Height (m) 1.248m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 72000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.198m³
    Packaging 4 - Weight (kg) 215.4kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
