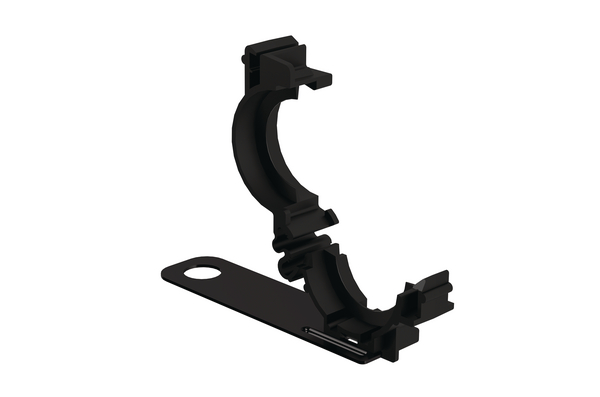

Corrugated tube clip for screw fixation/with pipe/tube holder, black, 600pcs.
Art.-No. 151-02619 | CDC22OSR60.5M10-PA66-BK |  Details

Internal rib prevents movement or rattling.

    Add to watchlist
    Downloads
    Colour Black (BK)
    Fixation Method screwable
    Key product features for convoluted tubes or with rib
    Material Polyamide 6.6 (PA66)
    Mounting Screw Type M10 Screw
    Pack Cont. 600pcs.
    Package Content packed in carton
    PART DESCRIPTION CDC22OSR60.5M10-PA66-BK
    Attach to Ø 22mm
    Bundle Diameter max (metric) 22.0mm
    Bundle ∅ 22.0mm
    Diameter (D) 23.7mm
    for Hole ∅ (FH) 10.6 mm
    Height (H) 72.8mm
    Length (L) 92.7mm
    Offset Length 60.5mm
    Stud ∅ M10
    Stud ∅ M10"
    Width (W) 23mm
    ∅ (D2) 31.2mm
    ∅ D 0.93"
    ∅ D2 1.23"
    CE Certification No
    CSA Certified No
    Flammability UL 94 V2
    Halogen-free No
    Hazardous Goods No
    Operating Temperature -40 °C to +85 °C
    Specifications
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised No
    Country of Origin MX
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
