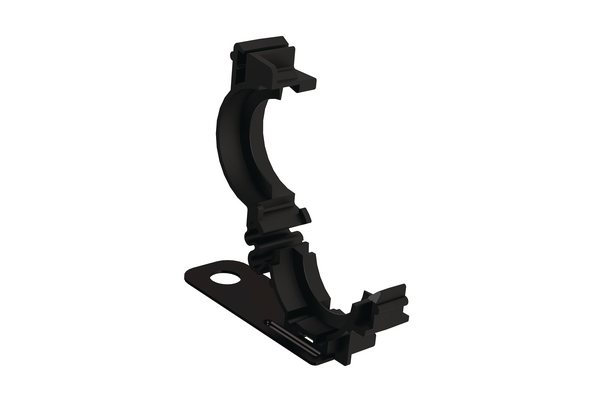

Corrugated tube clip for screw fixation/with pipe/tube holder, black, 600pcs.
Art.-No. 133-03403 | CDC22S20.5M8-PA66-BK |

Copied
Internal clamp rib prevents movement or rattling.

    • Can be easily assembled to convoluted tubing and reliably remain in position.
    • Internal rib prevents movement or rattling.
    • Multiple configurations to mount to a variety of surfaces.
    • Releaseable to allow for maintenance.
    Add to watchlist
    Downloads
    Colour Black (BK)
    Fixation Method screwable
    Key product features for convoluted tubes or with rib
    Material Polyamide 6.6 (PA66)
    Mounting Screw Type M8 Screw
    PART DESCRIPTION CDC22S20.5M8-PA66-BK
    Package Content 600pcs.
    Package Content packed in carton
    Type CDC22S20.5M8
    UV-Stabilised No
    ⌀ (D2) 31.2mm
    ⌀ D 0.93"
    ⌀ D2 1.23"
    Attach to ⌀ 22
    Bundle ⌀ 22.0mm
    Bundle ⌀ max. 22.0mm
    Diameter (D) 23.7mm
    Height (H) 72.8mm
    Length (L) 72.7mm
    Offset Length 40.5mm
    Stud ⌀ M8
    Width (W) 23mm
    for Hole ⌀ (FH) 8.8 mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 V2
    Halogen-free No
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    Country of Origin MX
    GTIN-13 / EAN 4031026594828
    Packaging 3 - Height (m) 0.352424999999999m
    Packaging 3 - Length (m) 0.5715m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0703m³
    Packaging 3 - Width (m) 0.34925m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 31162305
