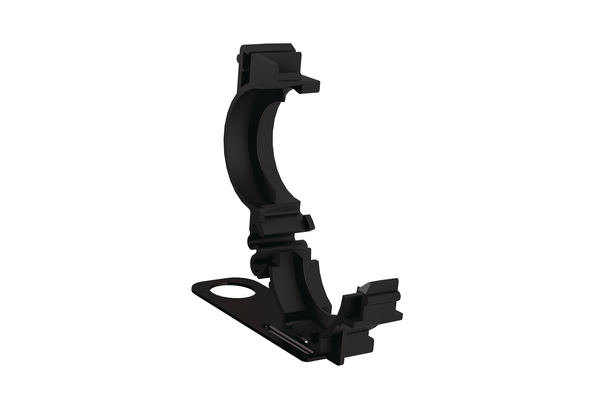

Corrugated tube clip for screw fixation/with pipe/tube holder, black, 500pcs.
Art.-No. 151-02608 | CDC22S40.5M12-PA66-BK |

Copied
Internal clamp rib prevents movement or rattling.

    • Can be easily assembled to convoluted tubing and reliably remain in position.
    • Internal rib prevents movement or rattling.
    • Multiple configurations to mount to a variety of surfaces.
    • Releaseable to allow for maintenance.
    Add to watchlist
    Downloads
    Colour Black (BK)
    Fixation Method screwable
    Key product features for convoluted tubes or with rib
    Material Polyamide 6.6 (PA66)
    Mounting Screw Type M12 Screw
    PART DESCRIPTION CDC22S40.5M12-PA66-BK
    Package Content 500pcs.
    Package Content packed in carton
    Type CDC22S40.5M12
    UV-Stabilised No
    ⌀ (D2) 31.2mm
    ⌀ D 0.93"
    ⌀ D2 1.23"
    Attach to ⌀ 22
    Bundle ⌀ 22.0mm
    Bundle ⌀ max. 22.0mm
    Diameter (D) 23.7mm
    Height (H) 72.8mm
    Length (L) 72.7mm
    Offset Length 40.5mm
    Stud ⌀ M12
    Width (W) 23.0mm
    for Hole ⌀ (FH) 13.0 mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 V2
    Halogen-free No
    Hazardous Goods No
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    Country of Origin MX
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 31162305
