Pneumatic tensioning tool plastic housing : MK9PSST

MK9PSST up to 16.0 mm strap width, Article number: 110-95300

Features

  • Unique levels of repeatability and accuracy
  • High application speed and low maintenance
  • Improved compressed air supply for faster tensioning piston movement
  • Shorter processing time and greater volume of connecting tie application
  • Ergonomic design
  • Automatic ejection of cut-off cable tie end
  • Ideally designed to apply stainless steel MBT-Series up to 16.0 mm width
  • On air pressure between 3 and 6 bar

Certifications & Approvals

Application

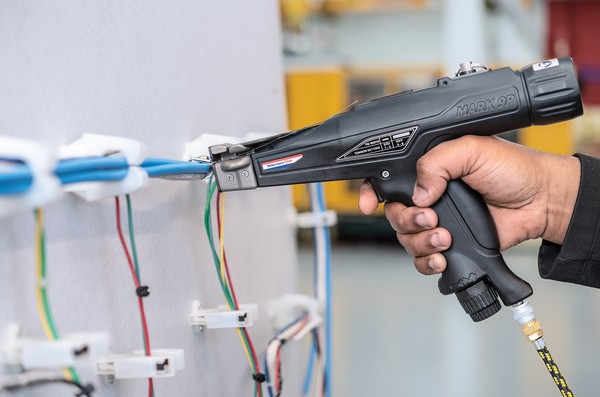

The MK9PSST pneumatic stainless steel tool is constructed with heavy-duty parts to ensure optimum performance in demanding environments. It is ideally designed to apply stainless steel metal ball tie series (MBT) up to 16.0 mm width.

Air att. Position lower air connection
Air Pressure (min.) 3Bar
Air Pressure PSI 90Psi
Colour Black (BK)
for Air Pressure min - max 3 - 6 Bar
Operation pneumatic
Pack Cont. 1pc.
PART DESCRIPTION MK9PSST-PL-BK
Product Family MK9PSST up to 16.0 mm strap width
Product Group Pneumatic tensioning tool plastic housing
Strap Thickness max. 0.48mm
Strap Thickness max. 0.019mm
Tool property Automatic cut off
Tool suitable cable tie material Stainless steel
Air Pressure (max.) 6Bar
Air Supply non oiled / oiled
Hose Internal Diameter 4.0mm
L x H x W approx. 280 x 200 x 55mm
Strap Width max. 16.0mm
Strap Width max. (G) 0.63"
Material Plastic (PL)
Specifications
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
ETIM 6.0 EC000453
ETIM 7.0 Key EC000453
UNSPSC Key 27112410
