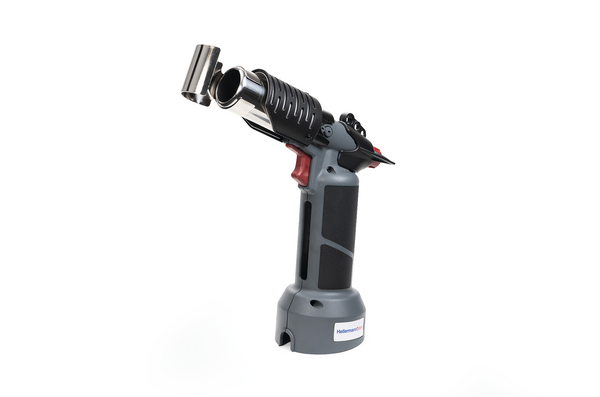

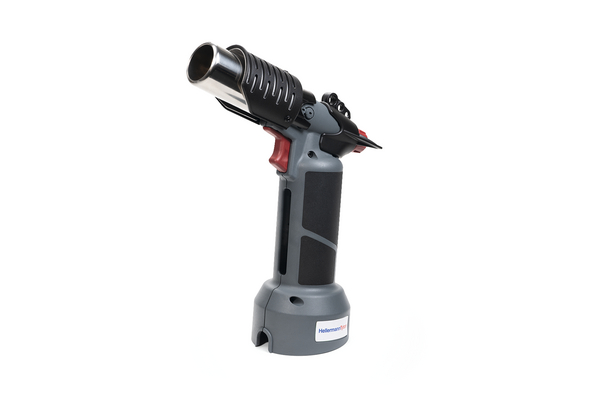

Cordless Heat Gun - Gas powered
Art.-No. 391-90010 | CHG900-PA-GY Details

  • Cordless heat gun powered by P445 gas cartridges
  • Flameless heat - no direct flame outlet
  • Autonomous operating time: 1 hour
  • Qualified for harsh outdoor conditions (-8 °C)
  • Lightweight 440 g tool (555 g incl. cartridge)

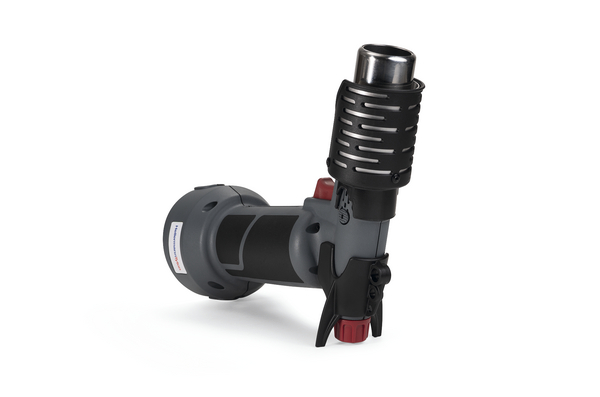

  • Hands-free operation due to integrated standing pod
  • Quick start piezo ignition
  • Instant turnaround due to antiflare feature

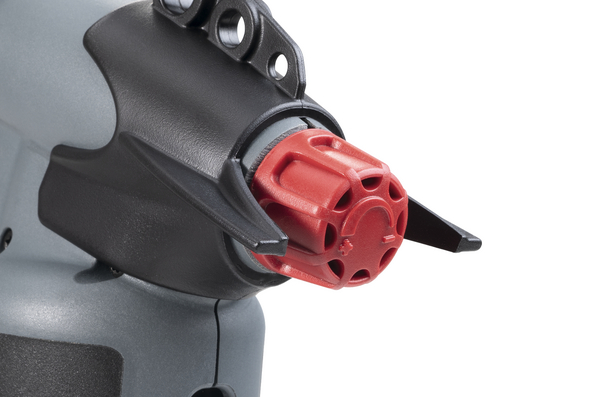

  • Precise gas flow adjustment
  • Ergonomic rugged design
  • Quick gas cartridge exchange
  • Tool-free maintenance
Show more
e-Learning

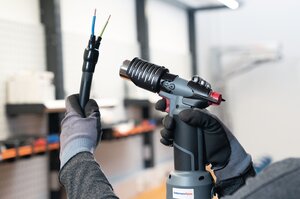

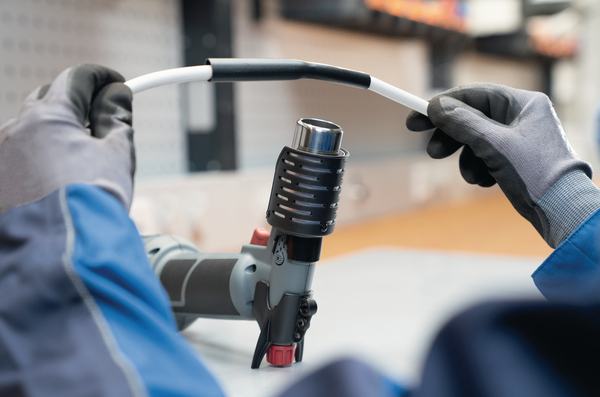

Application The HellermannTyton CHG900 Cordless Heat Gun is powered by P445 gas cartridges, providing autonomous working of 60 minutes in one go. The tool is designed to produce flameless heat which makes it the ideal hot-air gun to apply a huge variety of heat shrink tubing and heat shrink wire markers as well as molded shapes or heat shrink boots, transition shapes, end caps and cable repair sleeves especially in harsh outdoor conditions covering freezing temperatures as low as -8 °C.
Air flow control Continuously variable
Colour Grey (GY)

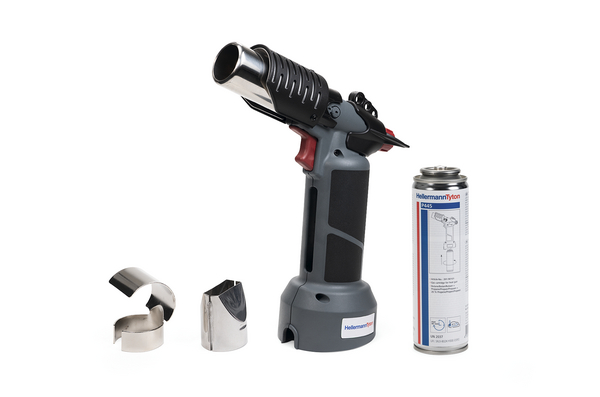

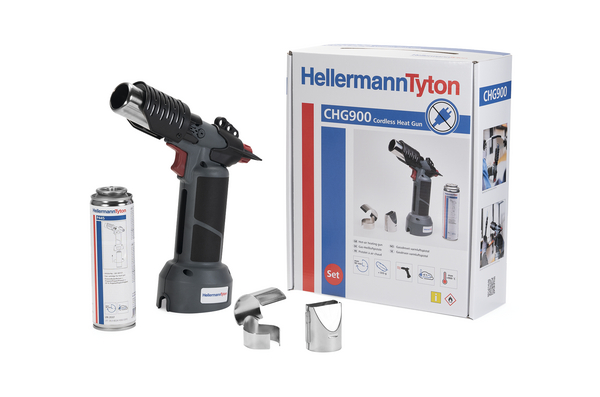

Description Cordless Heat Gun - CHG900 Set incl. P445 Gas Cartridge and 2 nozzles.
Material Polyamide (PA)
Package Content packed in pcs.
PART DESCRIPTION CHG900-PA-GY
Product Family CHG900
Product Group Cordless Heat Gun - Gas powered
Short Description Cordless Heat Gun - Gas powered
With temperature control (Yes/No) Yes
Weight/Unit 0.547kg
ELV compliant (Article 4 - 2) YES
Hazardous Goods Yes
Operating Temperature +190 °C to +900 °C
Specifications
Country of Origin CN
Customs Number 84688000
GTIN-13 / EAN 4031026660561
Packaging 1 - Height (m) 0.09m
Packaging 1 - Length (m) 0.32m
Packaging 1 - Qty 1
Packaging 1 - Type carton
Packaging 1 - Volume (m³) 0.00691
Packaging 1 - Weight (kg) 547kg
Packaging 1 - Width (m) 0.24m
Packaging 3 - Height (m) 0.265m
Packaging 3 - Length (m) 0.455m
Packaging 3 - Qty 5
Packaging 3 - Type carton
Packaging 3 - Volume (m³) 0.0374
Packaging 3 - Weight (kg) 3.235kg
Packaging 3 - Width (m) 0.31m
Packaging 4 - Height (m) 1.204m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 100
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.156
Packaging 4 - Weight (kg) 85.7kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC002967
ETIM 8.0 Key EC002967
ETIM 9.0 Key EC002967
