Automatic bundling up to Ø 20 mm T18RA3500

T18RA3500 PA6.6 HS - Natural cable ties on reel, Article number: 120-50009

Features

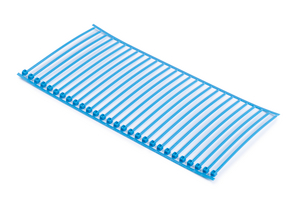

  • Available in bandoleers of 50 cable ties or reels of 3,500 cable ties
  • Available in natural and black
  • Repetitive tension on the bundles
  • Easily recyclable

Certifications & Approvals

Application

The inside-serrated cable ties are designed for use specifically in the automatic cable tying systems. The Autotool 2000 CPK is ideally suited for handling high volumes applications in wire harness facilities, automotive and industrial companies as wells as the packaging sector.

T18RA3500 PA6.6 HS - Natural cable ties on reel is suitable for following markets and industries

Application Tool AT2000 CPK
Colour Natural (NA)
Content Bandoleer with 3500 cable ties
Description Short (BMEcat) (max. 150 characters) Cable ties on reel for Automatic Cable Tying Systems 100x2.5 mm, PA66HS, natural (3500 pcs.)
GLOBAL PART NAME T18RA3500-PA66HS-NA
Identification Plate Position none
Pack Cont. 3500pcs.
Package Quantity per pieces
Product Family T18RA3500 PA6.6 HS - Natural cable ties on reel
Product Group Automatic bundling up to Ø 20 mm
Short Description Bands of 50 or reels of 3500 cable ties for automated application.
Tie Closure plastic pawl
Tool suitable cable tie material Plastic
Bundle ∅ max. 20.0mm
Bundle ∅ min. 0mm
Length (L) 100mm
Min.Tensile Strength 80N
Width (W) 2.5mm
ELV compliant (Article 4 - 2) YES
Flammability UL 94 V2
Halogenfree Yes
Hazardous goods No
Material Polyamide 6.6, heat stabilised (PA66HS)
Operating Temperature - °C -40 °C to +105 °C, (+145 °C, 500 h)
Specifications
Specifications ANSI/UL 1565, ANSI/UL 62275, ANSI/UL 746B
UL-File Number E65344
EAN / GTIN 4031026216089
Packaging 1 - Height (m) 0.45m
Packaging 1 - Length (m) 0.55m
Packaging 1 - Qty 3500
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.16088
Packaging 1 - Weight (kg) 1.1107kg
Packaging 1 - Width (m) 0.65m
Packaging 3 - Height (m) 0.552m
Packaging 3 - Length (m) 0.4m
Packaging 3 - Qty 14000
Packaging 3 - Type carton
Packaging 3 - Volume (m³) 0.089
Packaging 3 - Weight (kg) 5.2728kg
Packaging 3 - Width (m) 0.403m
Packaging 4 - Height (m) 1.249m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 168000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.199
Packaging 4 - Weight (kg) 84.288kg
Packaging 4 - Width (m) 0.8m
Quantity of UK Pallet 168000
Weight 1.1107kg
ETIM 5.0 EC000046
ETIM 6.0 EC000046
UNSPSC Key 39121703
