CABLE-SEAL-P280-020


Art.-No. 857-40590

| CABLE-SEAL-P280-020

 |

Copied

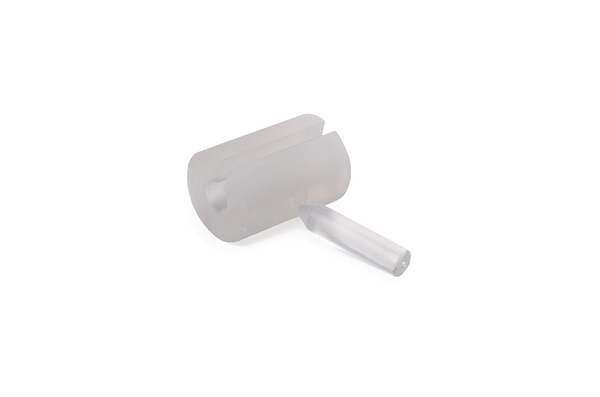

CCP Entry Seal with Plug

    • Solid grommet can be field split, allowing installation over pre-terminated cables
    • IP-68 compliant seal protects flat drop cable entry, preventing water damage
    • Grommet is color coded for easy size identification
    Add to watchlist
    Downloads
    Cable ⌀ max 6.0mm
    Cable ⌀ min 4.0mm
    Colour Semi-transparent white (WHCL)
    Description The CCP entry seals provide dust and water protection for the cable entering and exiting the CCP cable ports. The CCP is provided with a 4-6mm split seal with a sealing pin to provide protection with or without a cable installed. This is a replacement split seal for the CCP to be used with 4-6mm diameter cable. Seal is pre-split to install over pre-terminated cable end. Seal will maintain the IP-68 sealing requirements.
    PART DESCRIPTION CABLE-SEAL-P280-020
    Package Content 1
    Type CABLE-SEAL-P280-020
    Cable Size Max. (Imperial) 0.24"
    Cable Size Max. (metric) 6.0 mm
    Cable Size Min. (Imperial) 0.16 "
    Cable Size Min. (metric) 4.0 mm
    ROHS compliant Yes
    Specifications
    Country of Origin GB
    GTIN-13 / EAN 5022660345616
    ETIM 7.0 Key EC000879
    ETIM 8.0 Key EC000879
    ETIM 9.0 Key EC000879
    UNSPSC Key 26121630
