CABLE-SEAL-P280-069


Art.-No. 857-40599

| CABLE-SEAL-P280-069

 |

Copied

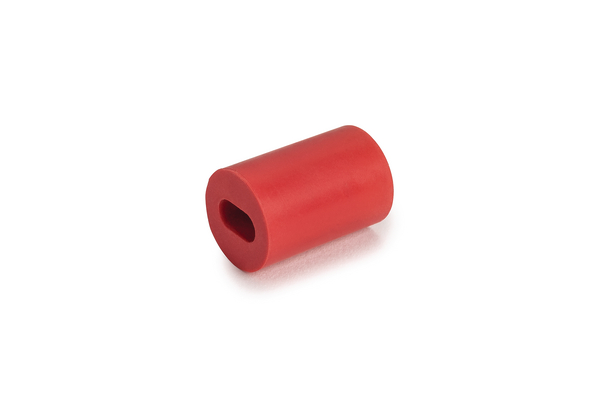

CCP Entry Seal, Flat Drop

    • Solid grommet can be field split, allowing installation over pre-terminated cables
    • IP-68 compliant seal protects flat drop cable entry, preventing water damage
    • Grommet is color coded for easy size identification
    Add to watchlist
    Downloads
    Cable ⌀ max 8.3mm
    Cable ⌀ min 4.3mm
    Colour Red (RD)
    Description The CCP entry seals provide dust and water protection for the cable entering and exiting the CCP cable ports. The CCP is provided with a 4.7x8.3-4.3x8mm seal with a sealing pin to provide protection with or without a cable installed. This is a non-split replacement seal for the CCP to be used with 6mm diameter cable. Seal can be field split to install over pre-terminated cable ends and continue to meet IP-68 sealing requirements.
    PART DESCRIPTION CABLE-SEAL-P280-069
    Package Content 1
    Type CABLE-SEAL-P280-069
    Cable Size Max. (Imperial) 0.18 x 0.33 "
    Cable Size Max. (metric) 4.7 x 8.3 mm
    Cable Size Min. (Imperial) 0.17 x 0.31 "
    Cable Size Min. (metric) 4.3 x 8 mm
    ROHS compliant Yes
    Specifications
    Country of Origin GB
    GTIN-13 / EAN 5022660172175
    ETIM 7.0 Key EC000879
    ETIM 8.0 Key EC000879
    ETIM 9.0 Key EC000879
    UNSPSC Key 26121630
