S Port Multi-Drop Cablelok : CABLELOK-S15M5-10

CablelokArticle number: 857-50229


  • Cable range 6.8mm to 7.2mm
  • Allows 5 cables drops from a single S Port
  • Supplied in multiples of 1 and 10
  • Supplied with installation lubricant sachets
Cable ∅ max 7.2mm
Cable ∅ min 6.8mm
Colour Black (BK)
Pack Cont. 10pcs.
Package Quantity per bag
Port S
Port count 5
Product Family Cablelok
Product Group S Port Multi-Drop Cablelok

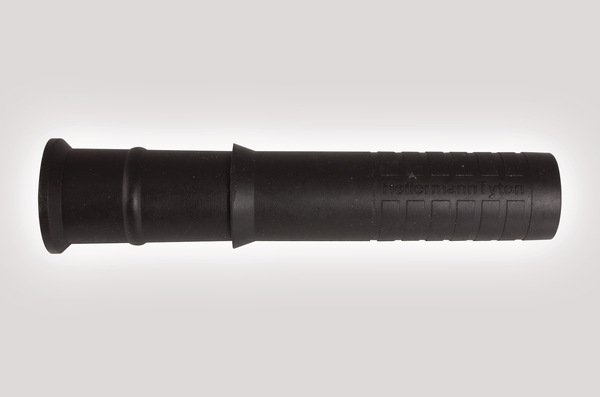

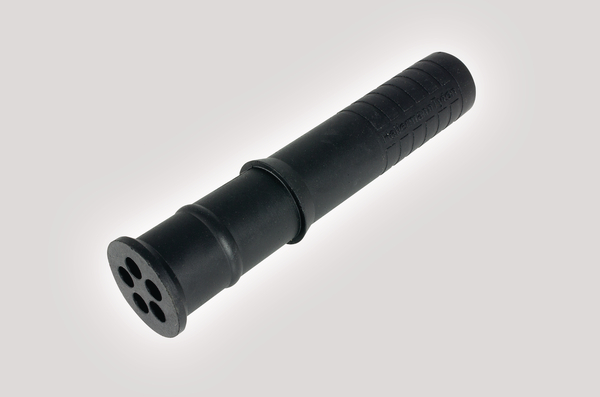

Technical Description The S Port Multi-Drop Cablelok is a meachnical seal manufactured from Polychloropene. This cablelok fits in to a single S Port on the HellermannTyton closures converting it from a single cable drop port to a 5 cable drop port for cables with a diameter range of 6.8mm - 7.2mm
Material Chloroprene Rubber (CR)
GTIN-13 / EAN 5022660134234
ETIM 7.0 Key EC002609
UNSPSC Key 43202218
