20/09/2025

Aluminium frame mount, T=2.0 – 2.2mm, natural, 100pcs.
Art.-No. 151-01232 | AFLM30-PA66-NA |

Copied

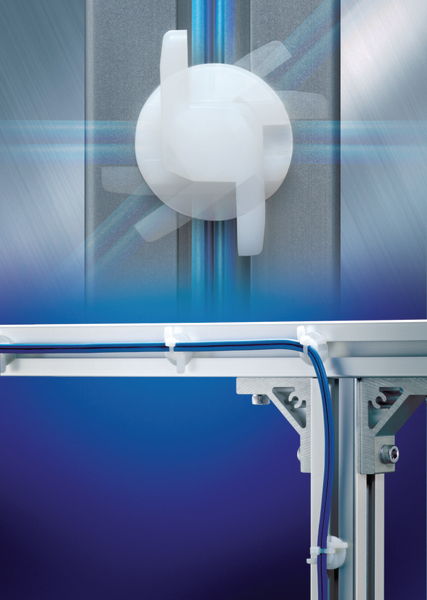

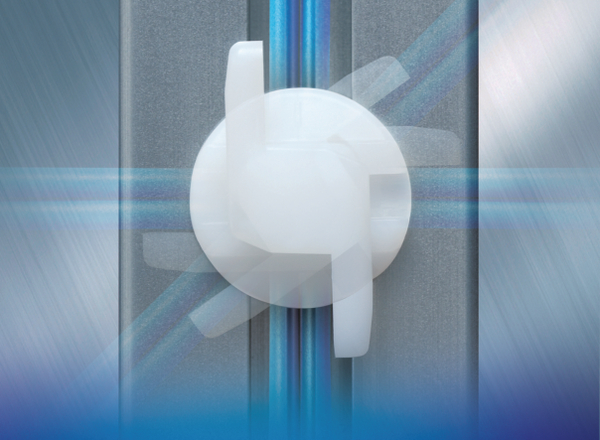

Easy to install, remove and reposition with just a quarter-turn – no tools necessary.

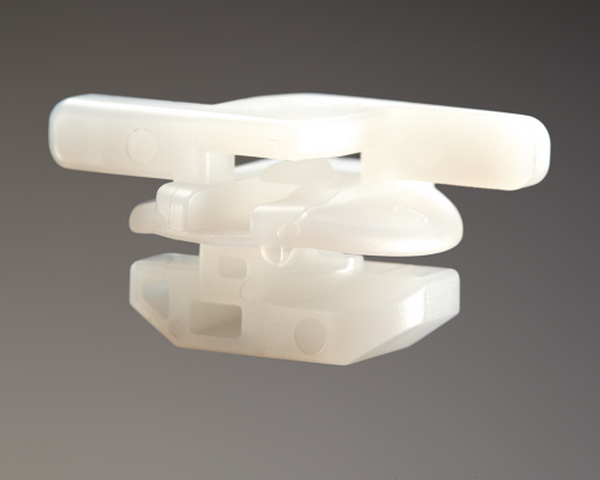

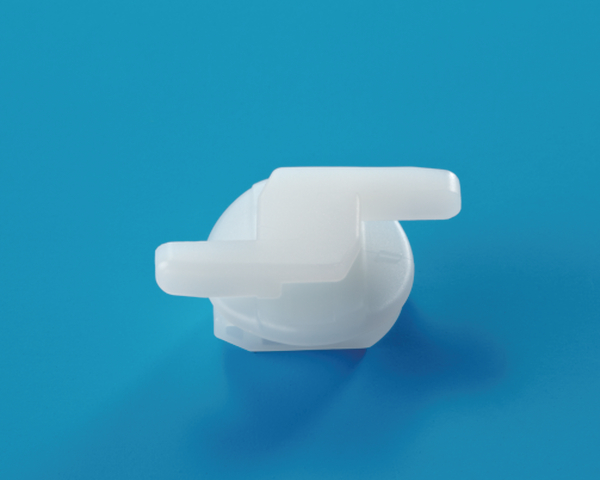

AFLM30.

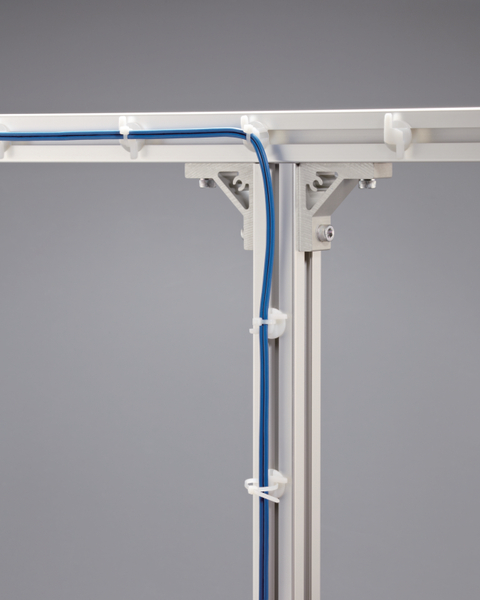

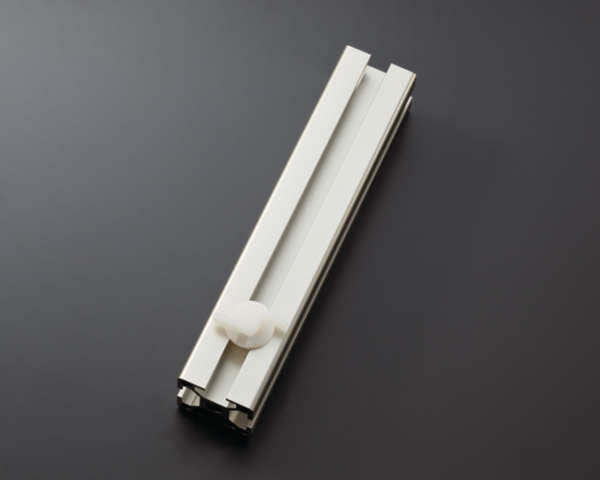

    • AFLM can be easily attached to aluminum frames, which are indispensable for equipment units used at production sites.
    • AFLM offers exceptional versatility as it can fit into frames from the major aluminum frame manufacturers.

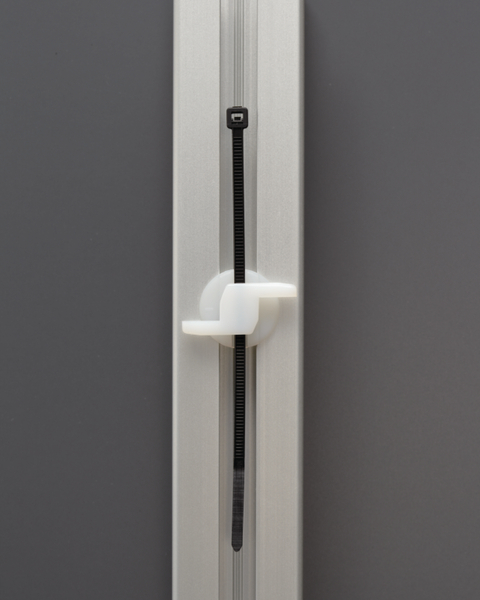

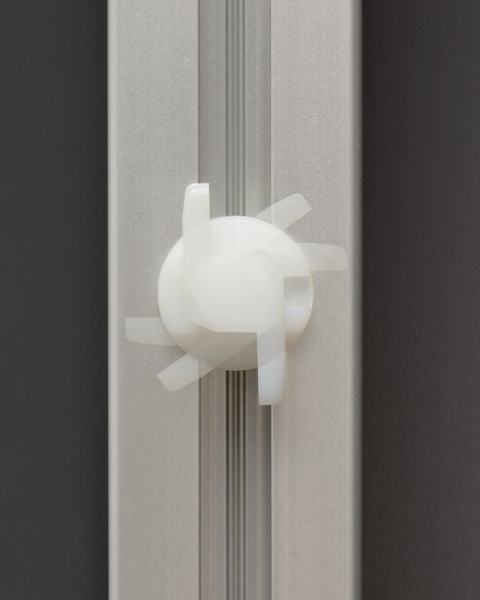

    • Can be attached to an aluminum frame in just one second. Simply rotate to lock in place.
    Add to watchlist
    Downloads
    Application For Aluminum Frame
    Colour Natural (NA)
    Material Polyamide 6.6 (PA66)
    PART DESCRIPTION AFLM30-PA66-NA
    Package Content 100pcs.
    Package Content packed in bag
    Product Family AFLM series
    Product Group Fixing mount for aluminum frame
    Short Description Mounts which are special designed for aluminum construction profiles
    Type AFLM30
    For Pipe Size/Type Applicable Aluminum Frames: 30mm square type
    Panel Thickness: 2～2.2mm
    Slot Width:8mm

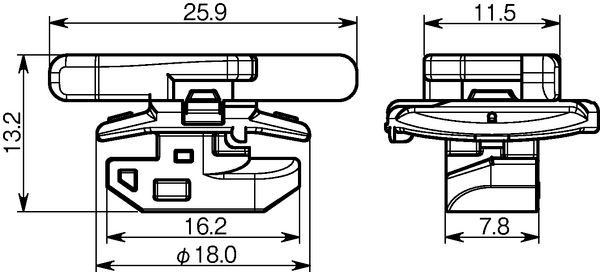

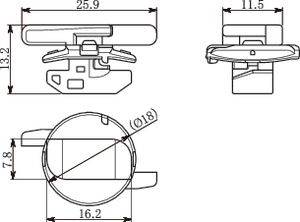

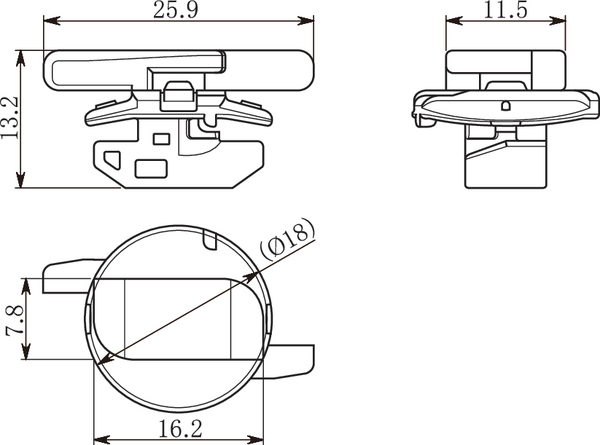

    Height (H) 13.2mm
    Length (L) 25.9mm
    Panel Thickness max. 2.0 – 2.2mm
    Width (W) 18mm
    Flammability UL 94 V2
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    Source products are manufactured with plastics recovered from recycled waste or marine environments, derived from renewable plant-based sources, or use materials with lower equivalent emissions. HellermannTyton also offers product solutions that – by design – reduce waste or support reusability and recyclability.<br/>Sustainable design focuses on product solutions that reduce or avoid waste, i.e. products that can be completely or partially dismantled and repositioned, thus supporting reuse and recyclability. Longevity is not part of this. Source products are manufactured with plastics recovered from recycled waste or marine environments, derived from renewable plant-based sources, or use materials with lower equivalent emissions. HellermannTyton also offers product solutions that – by design – reduce waste or support reusability and recyclability.
    Sustainable design focuses on product solutions that reduce or avoid waste, i.e. products that can be completely or partially dismantled and repositioned, thus supporting reuse and recyclability. Longevity is not part of this.
    Specifications ASTM D-4066PA0161
    Country of Origin JP
    GTIN-13 / EAN 4944387107869
    ETIM 7.0 Key EC000449
    ETIM 8.0 Key EC000449
    ETIM 9.0 Key EC000449
    UNSPSC Key 39121717
