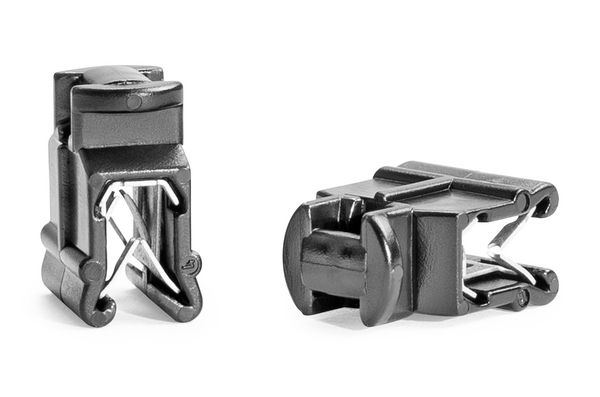

Cable tie mount for edge, T=1.5 - 4.0mm, black/silver, 10000pcs.
Art.-No. 151-04583 | ATSEC36-1-PA66HIRHS/C75S-BK/SR |

Copied
Fixing element for edges 1.5-4 mm for atuomatic cable tie systems
Automized clip application.

    • Optimized for use automatic cable tying systems
    • Easy to apply
    • The fixing elements can be tied automatically with Autotool System ATS
    Add to watchlist
    Downloads
    Application Clips to fix cables and harnesses in the automotive and white goods industry.
    Colour Black (BK), Silver (SR)
    Fixation Method Edge Clip
    Key product features ergonomic design, products for automatic tools
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS), Steel C75S (C75S)
    PART DESCRIPTION ATSEC36-1-PA66HIRHS/C75S-BK/SR
    Package Content 10000pcs.
    Package Content packed in box
    Product Family EdgeClip-Series for automatic cable tying systems
    Product Group Automatic bundling
    Short Description Footparts for Autotool System
    Type ATSEC36-1
    Weight/Unit 0.001754kg
    Height (H) 18.9mm
    Length (L) 15.0mm
    Panel Thickness max. 1.5 - 4.0mm
    Width (W) 10.1mm
    for Panel Thickness min - max 1.5 - 4 mm
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    Country of Origin PL
    Customs Number 39269097
    GTIN-13 / EAN 4031026779447
    Packaging 1 - Height (m) 0.8m
    Packaging 1 - Length (m) 0.6m
    Packaging 1 - Qty 8000
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.192m³
    Packaging 1 - Weight (kg) 14.097411kg
    Packaging 1 - Width (m) 0.4m
    Packaging 3 - Height (m) 0.184m
    Packaging 3 - Length (m) 0.58m
    Packaging 3 - Qty 8000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0406m³
    Packaging 3 - Weight (kg) 14.697411kg
    Packaging 3 - Width (m) 0.38m
    Packaging 4 - Height (m) 1.248m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 192000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.198m³
    Packaging 4 - Weight (kg) 373.728kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000449
    ETIM 8.0 Key EC000449
    ETIM 9.0 Key EC000449
    UNSPSC Key 39121717
