11/11/2025

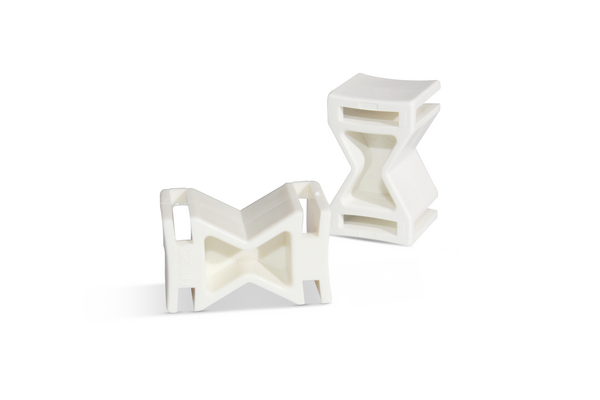

Cable tie mount, Wmax=12.5mm, white, 0.05ml
Art.-No. 151-01068 | CE30-PA46-WH |

Copied

    • Used to distance and secure wires, cables, tubes, hoses
    • Used together with T120 and T250 series cable ties
    • Easy to install
    • No tool is needed
    Add to watchlist
    Downloads
    Application The Spacer Shim is used to distance and secure cables, tubes, hoses and other products that require this purpose. It was specially developed to be used together with T120 and T250 series cable ties. With manual assembly, it does not require any type of special tool for its application.
    Colour White (WH)
    Material Polyamide 4.6 (PA46)
    PART DESCRIPTION CE30-PA46-WH
    Package Content 0.05ml
    Package Content packed in pack
    Product Family CE Series
    Product Group Spacer Shim
    Type CE30
    Bundle ⌀ 27mm
    Bundle ⌀ max. 27mm
    Height (H) 30mm
    Length (L) 18mm
    Strap Width max. (G) 12.5mm
    Width (W) 18mm
    Operating Temperature -40 °C to +150 °C
    ROHS compliant Yes
    Specifications
    Country of Origin BR
    GTIN-13 / EAN 7890176079466
    ETIM 7.0 Key EC000449
    ETIM 8.0 Key EC000449
    ETIM 9.0 Key EC000449
    UNSPSC Key 39121717
    Self-Adhesive cable tie mounts Self-Adhesive cable tie mounts

    Self-Adhesive cable tie mounts

    HellermannTyton self-adhesive cable tie mounts are perfectly suited for cable fastening on round and angled surfaces. To save time, reduce part diversity and weight.
