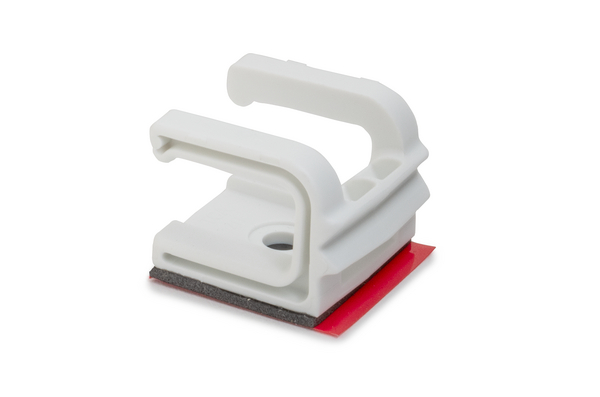

Cable tie mount, white, 100pcs.
Art.-No. 151-04725 | CTCM11CZA-PA66HS-WH |

Copied

    Add to watchlist
    Downloads
    Colour White (WH)
    Fixation Method Screw Mounting and Adhesive
    Material Polyamide 6.6, heat stabilised (PA66HS)
    PART DESCRIPTION CTCM11CZA-PA66HS-WH
    Package Content 100pcs.
    Package Content packed in bag
    Type CTCM11CZA
    UV-Stabilised No
    Weight/Unit 0.003169kg
    Height (H) 20.1mm
    Height (H2) 11.0mm
    Length (L) 25.7mm
    Width (W) 23.73mm
    Adhesive High Bond Acrylic
    Adhesive Operating Temperature -35 °C to +70 °C
    CE Certification Yes
    CSA Certified Yes
    Flammability UL 94 V2 (excluding adhesive)
    Halogen-free No
    Operating Temperature -40 °C to +125 °C
    ROHS compliant Yes
    Specifications
    Country of Origin US
    GTIN-13 / EAN 4031026788241
    Packaging 1 - Qty 100
    Packaging 1 - Type bag
    Packaging 3 - Height (m) 0.219075m
    Packaging 3 - Length (m) 0.6064m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0529m³
    Packaging 3 - Width (m) 0.3984625m
    ETIM 7.0 Key EC000449
    ETIM 8.0 Key EC000449
    ETIM 9.0 Key EC000449
    UNSPSC Key 39121717
    Self-Adhesive cable tie mounts Self-Adhesive cable tie mounts

    Self-Adhesive cable tie mounts

    HellermannTyton self-adhesive cable tie mounts are perfectly suited for cable fastening on round and angled surfaces. To save time, reduce part diversity and weight.
