11/06/2025

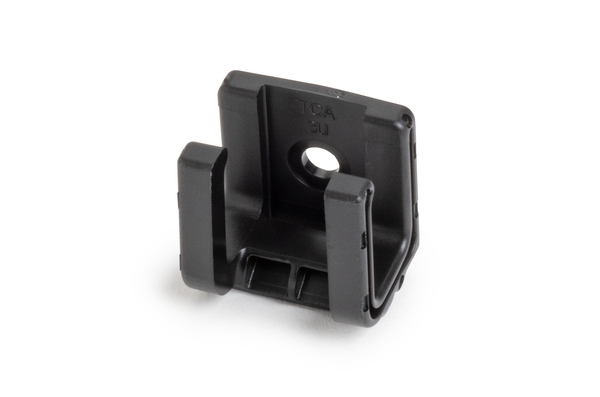

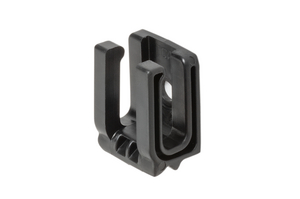

Cable tie mount for screw fixation, Wmax=13.0mm, ⌀4.5 mm, #8 (M4) Screw, black, 100pcs.
Art.-No. 151-04305 | CTCM11CZS-PA66HIRHS(REC)-BK |

Copied

    Add to watchlist
    Downloads
    Colour Black (BK)
    Fixation Method Screw Mounting and Rivet
    For Ties T18 - T120
    Material Polyamide 6.6 recycled, high impact modified, heat stabilised (PA66HIRHS(REC))
    Mounting Screw Type #8 (M4) Screw
    PART DESCRIPTION CTCM11CZS-PA66HIRHS(REC)-BK
    Pack Cont. 100pcs.
    Package Content packed in bag
    Strap Thickness max. 0.13"
    Strap Thickness max. 3.25mm
    Type CTCM11CZS
    Height (H) 19.0mm
    Height (H2) 11.0mm
    Length (L) 30.9mm
    Strap Width max. (G) 0.51"
    Strap Width max. (G) 13.0mm
    Width (W) 23.73mm
    for Hole ⌀ (FH) 4.5 mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free Yes
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Reusable (Yes/No) Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    UV-Stabilised No
    Country of Origin US
    GTIN-13 / EAN 4031026748726
    Packaging 1 - Qty 100
    Packaging 1 - Type bag
    Packaging 3 - Height (m) 0.219075m
    Packaging 3 - Length (m) 0.6064m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0529m³
    Packaging 3 - Width (m) 0.3984625m
    ETIM 7.0 Key EC000449
    ETIM 8.0 Key EC000449
    ETIM 9.0 Key EC000449
    UNSPSC Key 39121717
    Self-Adhesive cable tie mounts Self-Adhesive cable tie mounts

    Self-Adhesive cable tie mounts

    HellermannTyton self-adhesive cable tie mounts are perfectly suited for cable fastening on round and angled surfaces. To save time, reduce part diversity and weight.
